Idronaut - Model OCEAN SEVEN 310 -BOREHOLE multiparameter CTD

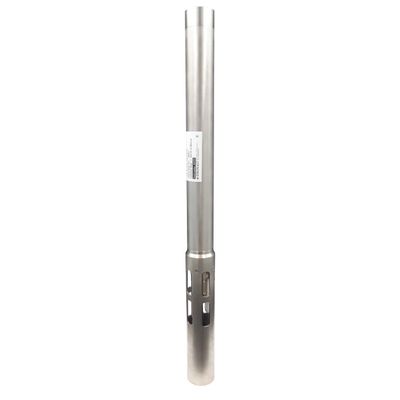

The OCEAN SEVEN 310 BOREHOLE multiparameter CTD is the result of IDROANUT’s 40-year-old experience in the design and manufacturing of high-technology borehole probes for deep groundwater profiling. The OS310 CTD multiparameter probe, which presents very small size (diameter of only 43mm), has been specifically designed for groundwater investigations through “boreholes” and uses very reliable, accurate and drift-free high-quality sensors, associated with advanced and miniaturized electronics.
Thanks to the adoption of a new generation of electronic devices, the OS310 can guarantee sampling rates up to 28Hz, with long-term sensor stability, making this probe the best choice for profiling applications. The OS310 CTD can be easily integrated/adapted to third-party systems like external data logger. The OS310 multiparameter CTD does not require pumps or any other external device to flush the sensors and continuously transmits acquired data converted into engineering units via telemetry. The OS310 CTD allows the operator to select the proper conductivity range for salt or fresh water, making this probe a very advanced tool for investigation of ground-water influenced by salt-water intrusion.
The high accuracy seven platinum ring quartz conductivity cell (patented) can be cleaned in the field without the need for recalibration. This unique quartz cell employs a large diameter (8mm) and a short length (46mm) to guarantee self-flushing and no clogging after long-term deployment even in biologically active waters.
Features a very fast platinum resistance thermometer (response time: 50 ms). Negligible self-heating effect.
The OS310 CTD is equipped with a 4Gbyte data memory, which allows the storing of about 250 millions data sets, each one being composed of the reading of all the installed sensors plus the acquisition date and time. The OS310 communicates at a speed up to 115k2 bps, thus keeping data uploading time to a minimum.
The telemetry interface allows interfacing the OS310 through standard oceanographic coaxial cables up to 10Km long. When communicating through data telemetry, the IDRONAUT deck unit is mandatory. The OS310 can use both the low-voltage (30/60 VDC) Portable deck unit and the high-voltage (220 VDC) on-board MkPlus deck unit.
The Telemetry Portable Deck Unit powers and interfaces, by coaxial oceanographic cables, the OCEAN SEVEN 310 multiparameter CTD with a personal computer. The portable deck unit is equipped with a transceiver (modem) which allows communication with the probe. The portable deck unit is housed in a waterproof plastic case and is provided with an internal mains rechargeable lead battery (12VDC, 7A/h) which permits probe operation in the absence of the mains supply.
The internal battery guarantees up to 20 hours of continuous probe and deck unit operation.
The portable deck unit comes complete with an international battery charger.
Telemetry power supply: 30/60 VDC (max 0.3A@12V).
Dimensions: 340 x 300 x 160 mm. Weight: 6.5 kg
- Interfaces: RS232C, RS485, TTL, Data Telemetry
- Real-time and logging: Up to 28 Hz.
- Power Supply: 9...32 VDC. Running: 90 mA @ 3.6VDC. Standby: 10 μA @ 3.6VDC.
