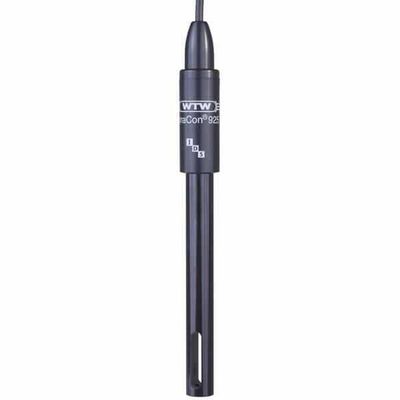

WTW TetraCon - Model 925 - 301710 -IDS Digital Conductivity Cells for Universal Applications
Universal digital conductiviy measurement in aqueous samples. DS conductivity measuring cells – Digital universal measurements in different samples with proven four electrode technology.
Most popular related searches
conductivity cell
conductivity monitoring cell
aqueous sample
conductivity monitoring
waterproofing
conductivity electrode
TDS value
TDS
- Proven electrode technology
- Automatic transfer of cell constant and temperature compensation
- Wide area of application - 1 µS/cm to 2000 mS/cm
4-electrode-IDS conductivity cell with graphite electrodes, epoxy shaft, cell constant 0.475 cm–1, waterproof up to 10 bar (IP 68).
TetraCon® 925: 1.5 m fixed cable with waterproof digital connector
TetraCon® 925-3: 3 m fixed cable with waterproof digital connector
TetraCon® 925-P: plug head for AS/IDS-x cables, MPP 930 or wireless modules IDS WLM-S Specifications
- Conductivity: 10 µS/cm … 2000 mS/cm, ±0.5 % of value
- Spec. resistance: 0.5 Ohm cm ...100 kOhm cm, ±0.5 % of value
- Salinity: 0.0 ... 70,0, ± 0.5 % of value
- TDS: 0 ... 1999 mg/l, 0.0 ... 199.9 g/l,±0.5 % of value
- Temperature: 0 ... 100.0 °C, ±0.2 °C
