IDS - Model RIS MF Hi-MOD -Highly Modular Multi Frequency Array Based GPR

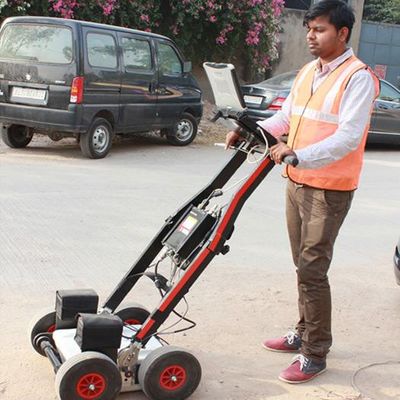

The RIS Hi-MOD represents the latest generation technology in highly modular Multi frequency array based GPR for providing highly accurate mapping of utilities. The RIS Hi-MOD utilizes up to 4 Dual frequency antennas (operating at 200 MHz and 600 MHz) antennas (i.e. up to 8 channels) and is based on a cart system that is 2.0m wide, providing max walking speed up to 10km/hr. The RIS MF is unique in providing the field procedure of making both longitudinal and transversal scans in one go. The system is based on a central high powered processing system controller connected to multiple antennas, connected in a chain architecture to carry out high resolution capture, collation and processing of underground utility data over large areas which can be exported to CAD for mapping in 2D/3D.
- Deep and shallow antennas in one compact box: Two antennas in the same box, with the option of choosing 200 MHz & 600MHz or 400 MHz & 900MHz, help the operator to locate pipes and cables by providing the proper frequency for a specific search parameter. It provides a real-time display of deep and shallow antennas on the same screen.
- Modular: Antenna boxes can be quickly added in “chain connection” while in the field (no tools required) with up to 8 in operation simultaneously. As a result, the system is able to work in any available space.
- 3D Radar Tomography: Multi-frequency data fusion and a consolidated procedure to collect the data enable accurate 3D images of the subsurface to be achieved, helping the operator to distinguish individual anomalies and buried targets.
- Professional Utility Mapping Capability: The result can be exported in several formats including GIS and CAD (AutoCAD or MicroStation) for a professional survey.
- Flexible: Powered by the IDS Multi-channel Control unit, the system can be used to drive every IDS antenna.
- Radar Acquisition unit: IDS DAD FAST WAVE, with RIS K2 acquisition software
- Max Number of channels: Up to 8
- Antenna Frequencies: 200-600MHz
- Positioning: Metric wheel and/or GPS interface
- Collection Speed: 3.77m/sec in full configuration (8 channels)
- Max. Scan Rate: 4760 Scan/Sec
- Battery operation time: >8h
- Weight: 58 kg full configuration (i.e 4 Antennas)
- Size on ground: 200 cm x 60 cm (full configuration)
- Survey path width: Up to radar scans, 52 cm each
- Wireless connection: Available
- Environment: IP65
- Data Logger: Tough book laptop
- Item Code: ST-RIS-HIMOD
Hardware Details
- Fast Wave :The fastest digital radar control unit on the market, providing a high stacking factor and hence superior penetration depth
- Chain Architecture :Antennas are added to the system in a "chain" connection in"plug and play" mode.
- Multifrequency :Each antenna houses dual frequency 200 and 600 MHz frequencies for better penetration and resolution detecting both deep and shallow pipes & cables
- Modular design :Can be reconfigured in the field (no tools required ) for 1to 4 antennas
- Robust : Robust mechanical structure for intensive use.
- All Terrain :
- The trolley has been designed for both asphalt and rough terrain.
- Provided with tough book laptop.
Software Details
- Advanced GRED 3D Post processing software provided with system capable of
- Automatic target identification for high productivity.
- High penetration depth.
- Database for rational storage of large volume of data.
- CAD/GIS automatic rendering
- 2D/3D mapping & data representation
- High resolution data fusion of longitudinal & transversal scans
