Asian Contec Ltd. products

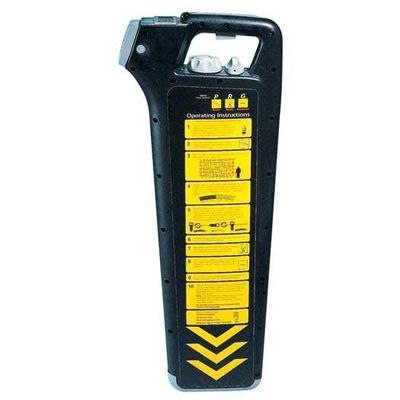

Cat 33XD most rugged underground cable locator in the industry with Power (P), Radio (R) & 33kHz Generator Modes (G). Built Like a Tank. Depth measurement. Easy to Use. Built to Last. The Stanlay C.Scope CAT 33 XD Cable Avoidance Tool are industry standard locators with Power (P), Radio (R) & 33kHz Generator Modes (G) that detect and trace buried services simply, quickly and reliably. The CAT 33XD with its 3 modes of operation provides information about underground services before you dig. CAT 33 XD Cable avoidance tool serves two purposes : CAT 33 XD CAT Cable avoidance, locating, receiver is used as a standalone equipment for cable locating, detection and avoidance of buried cable & pipe utilities prior to any form of excavation. When combined with the SGV Signal Generator and accessories, the Cable Avoidance Tool XD becomes a versatile, all round Pipe and Cable Locating & Route Tracing Package with Depth Measurement.

The RIS Hi-MOD represents the latest generation technology in highly modular Multi frequency array based GPR for providing highly accurate mapping of utilities. The RIS Hi-MOD utilizes up to 4 Dual frequency antennas (operating at 200 MHz and 600 MHz) antennas (i.e. up to 8 channels) and is based on a cart system that is 2.0m wide, providing max walking speed up to 10km/hr. The RIS MF is unique in providing the field procedure of making both longitudinal and transversal scans in one go. The system is based on a central high powered processing system controller connected to multiple antennas, connected in a chain architecture to carry out high resolution capture, collation and processing of underground utility data over large areas which can be exported to CAD for mapping in 2D/3D.

CTRAK Pipetraker Traceable Maxi Duct Rodder is an ideal accessory for utilization with pipe & cable locators, to EXTEND the capability of the locating equipment’s to identify location & route of buried nonmetallic ducts or telecom pipes.  The PipeTraker Traceable Maxi Duct rodder is based on a sturdy composite fiberglass rod of 9mm dia with a built in 1mm copper wire that is rigid yet flexible enough to guide into nonmetallic HDPE ducts, plastic pipes and metal pipes up to lengths of 300 meters / 1000 feet.

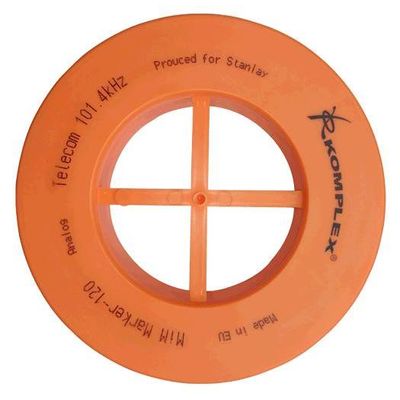

MIM120 Electronic marker are passive pipe and cable marker for permanent marking and tracing of underground facilities. MIM120 passive pipe and cable marker is an economical, compact marker that can be used in horizontal, vertical or at any angle. Built with high density PS cover and read range of 1.4 m (ideal) and 1.5m(max). The color of marker varies with the operating frequency chosen by the user depending on the device used. The operating frequency of 101.4,145.7,121.6, 83,169.8 and 134kHz suitable for telephone cables, water pipelines, sewer pipelines, gas pipelines and power cables which corresponds to orange, blue, green, yellow and red respectively. MIM120 Electronic marker is a sturdy marker with life of ≥ 50 years.

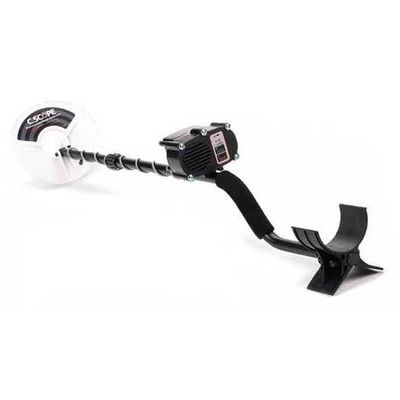

Cscope CS880 manhole metal cover locator detects lost or hidden metal objects in the ground such as manhole covers and stopcock covers buried under road tarmac and grass. Cscope CS880 manhole cover locator can be used to successfully find stopcock covers, steel reinforcement rods in concrete road surfaces (rebar), fuel tanks, valve heads and metal pipes or any metallic objects that are buried under tarmac, earth, grass, sand, snow, paving or other material. The CS880 metal cover locator has been designed specifically for the exacting requirements of the water industry and the ground working contractor. It is incredibly simple to operate, lightweight and user friendly. It is also used by the telecom & power industry to locate lost manholes.

IPC1 is a drain/pipe Inspection camera that comes with a mini 14mm camera head, a 7inch LCD monitor with DVR, a 20m rotatable cable reel with capability of being pushed into a 40mm dia. pipe and pass through 90 degree bend in a pipe for inspection of small pipes. It`s widely used in video inspection of plumbing pipes, Drains, Duct, chimney, machinery and In-building ducting inspection. Suitable for smaller network of pipes.

The PQI 380 is a lightweight, environmental safe & user friendly non-nuclear asphalt density gauge which provides quick and accurate measurement of asphalt density. Unlike nuclear gauges, the PQI 380 takes accurate readings in about three seconds, allowing the test technician plenty of time to run a series of tests. Its electromagnetic field is far safer than devices based on nuclear sources and it costs less to own and operate. Based on a touch screen operating system, the PQI 380 is easy to use by any level of operator. The PQI 380 Non-Nuclear asphalt density gauge is equipped with a touch screen and a user friendly graphical user interface. The PQI 380 uses Microsoft Windows CE for smooth operation, easy software upgrades and enhanced user support.

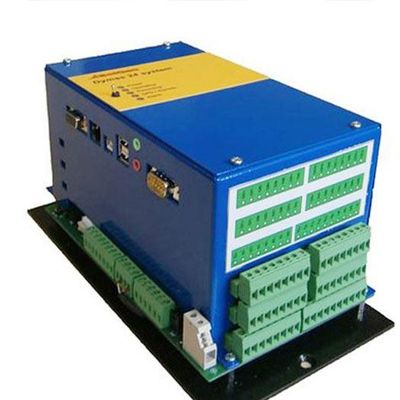

The Dymas 24 Alben is a multichannel acquisition system suitable for long term monitoring for stable configuration inside dams and structures. The system setup ranges from 6, 12 up to 48 channels in multiples of 6 (with or without communication modules) positioned in a single metallic cabinet provided for wall or floor fixing. Dymas 24 Seismic Recorder is used for both Micro seismic & Vibrational studies.
