iiM AG
iiM VisioCablePro AlphaOne - Model 401.0030.03 -Automatic Measuring Device
FromiiM AG

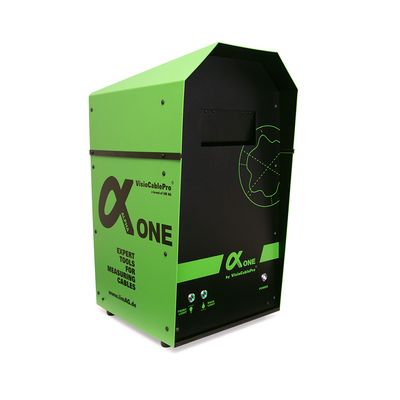

For measuring cable & hose samples with an outer diameter up to 95 mm (3.74“). The new AlphaOne - the combination of precision and flexibility. With the compact and simultaneously highly precise measuring device for cross section measurements of cables and hoses, you receive new possibilities in your quality assurance process.
Most popular related searches
precision monitoring system
shock and vibration
automatic monitoring system
automatic monitoring
laboratory productivity
laboratory product
- Highly precise measuring device for cross section measurements of cables and hoses
- Measuring device especially designed for use in a production line
- Specific object size - depending on the production line
- Quick and very easy measurement
- Little training required
- Measuring software VELOX included
- Compatible with all database software of the VCP family
- Various external CAQ software are connectable
- Low operator influence due to fixed focusing as well as preset illumination
- Robust design and simple, user-friendly operation
- Shock and vibration resistant due to an optimised sensor arrangement and balanced weight distribution
- Measuring software enables various operator level settings (production, laboratory, administrator, service, etc.)
- Standardised individual components lead to supply security and therefore a short delivery period
- Easy connection with external devices
Optional
- AlphaOne inclusive All-In-One Windows PC
- Size (W x L x H): 450 x 400 x 720 mm, 17.72 x 15.75 x 28.35 Inch
- Weight: 25 kg, 55.12 lbs
- Supply Voltage: 100 - 240 V, 50 - 60 Hz
- Input Power: max. 100 Watts
- Resolution: corresponds to 0.1% of the image field
- Lighting: LED
- Camera*: customised 1 Camera, high resolution
- Measuring range: up to max. 95 mm (3.74“) outer diameter
- Measuring according to standards:
- IEC 60811-201; -202; -203
- LV112 (A Factor)
- ICEA S-94-649
