iiM AG products

For measuring cable & hose samples with an outer diameter up to 95 mm (3.74“). The new AlphaOne - the combination of precision and flexibility. With the compact and simultaneously highly precise measuring device for cross section measurements of cables and hoses, you receive new possibilities in your quality assurance process.

Stand-alone system for high-precision and fast measurement of wire guides and extrusion nozzles. The VCPEx+ is a camera-based system for measuring wire guides and extrusion tools - this means that only independently tested tools without user influence are used within the production process. It is specially designed for use in the production, the tool handout and the laboratory. Ensure your product quality right from the beginning - even before the production process. Possible measurement results: Maximum, minimum and average inside diameter (With these values any deformation or wear can be identified - the wires could be positioned undefined in the cable after extrusion which can lead to an underranged wall thickness.).

For separating cable jackets / -insulations from the electrical conductor. Easy separation of cable jackets from the electrical conductor. Suitable for samples with a high strip force. Also designed for larger sample outer diameters (depending on wall thickness). Suitable preparation before cutting cable samples for measuring (e.g. with the ORC-series). Robust, stable construction. Easy to use.

Preparation of cable samples for further processing. Applicable for cable types with solid core cross-sections. E.g. Sample preparation for cutting with ORC family.

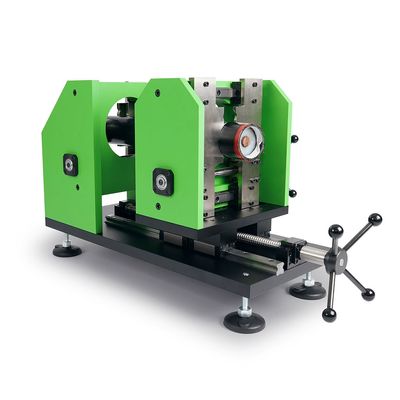

Sample preparation according to IEC 60811. With the Cable O-Ring Cutter 150 it is really easy and quick to cut sample slices (cable sheath cutter) with an outer diameter from 20 to 150 millimeters (0.78 - 5.9"). By using special chuck jaws it is even possible to cut cable samples with a outer diameter up to 200 mm (7.9").

With the Cable O-Ring Cutter 80 it is really easy and quick to cut sample slices of hard materials (PE, XLPE) with an outer diameter from 15 to 80 mm (

With the Cable O-Ring Cutter 65 it is really easy and quick to cut sample slices (cable sheath cutter) with an outer diameter from 1 to 65 mm (
