Ikeuchi - Model AKIMist SETOJet -Revolutionary Dry Fog Humidification System
AKIMist is a revolutionary dry fog humidification system designed to provide precise humidity control with droplets around 7.5 µm, ensuring no surface wetting.
The AKIMist “E” SETOJet Version humidifier is designed for sites with high levels of airborne dust, such as paper dust and paint particles, which often clog the nozzles. This is an excellent alternative to our conventional humidifiers for sites with clogging problems.
Highlights
- Anti-clogging
- Painting and Dust
- Prevent foreign particles
- Non-wetting

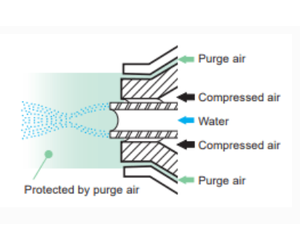

AKIMist SETOJet creates a wall of air around the spray to prevent foreign particles from adhering to the nozzle orifices, reducing the frequency of maintenance. This SETOJet nozzle is compatible with the existing AKIMist “E” humidifier.

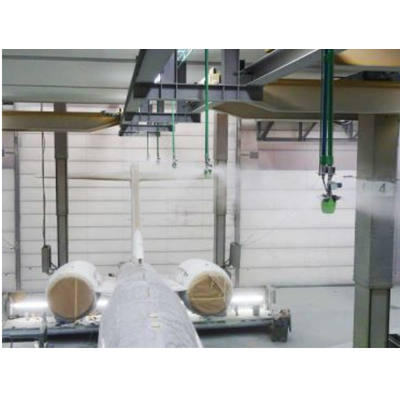

The AKIMist® SETOJet is ideal in used in a number of industries where dust and clogging is an issue. These are general industries like printing, pulp and paper, automotive, painting, textile and so forth. The AKIMist “E” SETOJet can be applied with up to 4 spray nozzles which each spray at a distance of 4 meters. This provides flexibility to adjust the spray direction as needed and possible to cover large areas with only one unit. It is easy to change the direction of each spray nozzle by hand.
Dry fog humidification can be used for a number of applications:
- Humidification control
- Elimination of static electricity
- Dust suppression
- Reduce virus spread
- Disinfection
Energy-efficient 80% less
AKIMist is extremely energy-efficient and uses up to 80% less energy than conventional humidification systems.
Cooling effect
AKIMist cools around 2°C while controlling the humidity level. It reduces 20% of the energy used for air-conditioning and thereby saves cost.
Spot humidification
AKIMist can be used for spot humidification and be placed directly by the source of issue. This reduces the price significantly as only a few units may be needed.
Installation and maintenance
Little maintenance
AKIMist requires very little maintenance compared to other humidification equipment. In addition, it is very easy to maintain as it is installed within the factory and hanging from the ceiling or wall.
Easy installation
AKIMist is easy to install and can be fitted into any current HVAC design. AKIMist can be installed with a wall or ceiling fitting or
even as a portable option.
Compact
AKIMist is very compact. Like the size of a 5 inch smartphone. This makes it easy to fit into tight factory spaces.
