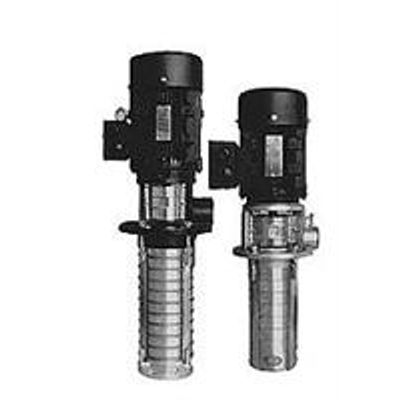

CNP India - Model CDLK/F Series -Immersion Multistage Centrifugal Pump
These pumps are compact, highly reliable, low maintenance and easy to install. This immersion multistage pump has Flow Range (Q) 0.4-55.0 M3/hr and Liquid Temperature -15°C - +120°C.
Most popular related searches
multistage centrifugal pump
centrifugal pumping
centrifugal pump
multistage pump
vertical multistage centrifugal pump
drilling equipment
centrifuge
industrial cooling
digital temperature controller
lapping machine
- CNC Lathe
- Milling Machine
- Drilling Machine
- Grinding machines
- EDM Machine
- Lapping Machine
- In Coolant Processing/ Cleaning Centres
- Industrial CleaningEquipments
- For Recirculating Coolant
- For Cooling of Devices
- Industrial Cooling
- In Textile Industry
- Machine Tool Industry
- Filtration of Coolant
- Mould Temperature Control (MTC)
- In Paper and Pulp Industry
- Pump for Windmill Cooling
- In Machine Tool Industry
- In Textile Industry
- CDLKF is a Non Self Priming multi stage centrifugal pump installed with standard motor.
- The motor shaft is directly connected to the pump.
- These pumps are compact, highly reliable, low maintenance and easy to install. This immersion multistage pump has Flow Range(Q) 0.4-55.0 M3/hr and Liquid Temperature -15°C - +120°C.
- Stainless steel 304 or Stainless steel 316.
- The pump head and suction & discharge head can be made of cast iron on request too.
- 60 Hz pumps are also available on request
- Flow Range (Q) : 0.4-55.0 M3/hr
- Delivery Head : Max. 305 mtr (30.5 Bar)
- Liquid Temperature : -15°C~+120°C
- Speed (n) : 2900 rpm
- Power (P) : up to 45 kW
- MOC : SS-304 and SS-316
