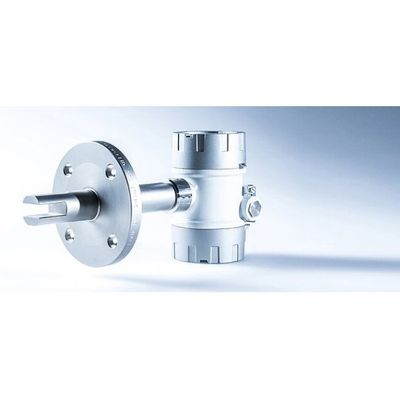

SensoTech - Model 40-40 EX -Immersion Sensor

Parameter: Value

• temperature of liquid: standard: -20 °C to 120 °C
• optional: to 150 °C
• pressure: standard: 16 bar
• optional: to 500 bar
• sensor material: standard: stainless steel or Hastelloy
• optional: Titanium, Tantalum, Zirconium, Monel and other
• process connection: standard: flange DN 50 or ANSI 2"
• optional: other on request
• housing: process housing IP65
• diameter of sensor head: 40 mm
• diameter of sensor bar: 40 mm
• immersion length: standard: 92 mm,
• optional: 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm, 2000 mm
• explosion proof: yes (ATEX, IECEx, FM)
• supply: 24 VDC, 3 W
