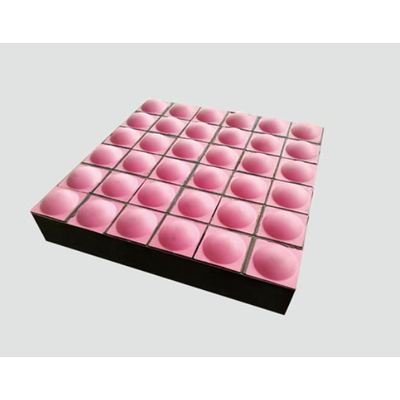

Kingcera - Model NMC-KJ -Impact Resistant Ceramic Wear Liner

This product adopts the hot vulcanization process to vulcanize the ceramic in the rubber or directly vulcanize the ceramic and rubber on the steel plate. The steel plate is equipped with countersunk bolts, which increases the firmness between the liner and the equipment and ensures the reliability of wear resistance and impact resistance.

The Impact resistant ceramic wear liner (NMC-KJ) ,It is used as an wear and impact resistance on equipment with large conveying volume, large material, and large impact under normal temperature environment.

• Density : 3.7~6 g/cm³
• Rockwell Hardness(HRA) : ≥85
• Vicker Hardness (Hv10) : ≥1100
• Bending Strength : 300~800 Mpa
• Compressive strength : 1200~3000 Mpa
• Wear ability : ≤0.03 cm³
• Fracture toughness (KIC) : ≥3.2 Mpa/m²
• Temperature resistant : ≤ 750 ?
• Acid and alkali Ability : PH 3~12
