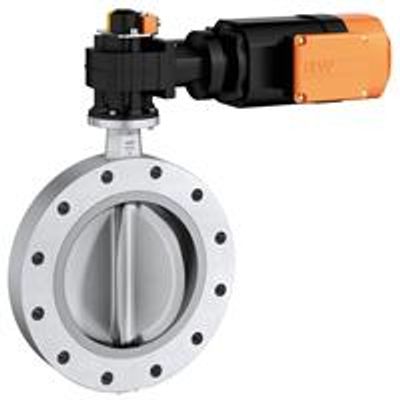

EBRO ARMATURENImpeller valve type FS-M

SHARE
Series production is our business - the development of customised solutions for special applications is our passion. For more than 40 years we have been developing tailor-made solutions in close collaboration with our customers, for challenging fields of application that simply require more than a standardised valve product. This has resulted in countless variations. Many of them have been developed to series production, others are manufactured in small batches for select applications. We can only show the tip of the iceberg here. Challenge us!
Most popular related searches

Nominal diameter: DN 150 - DN 500

Face-to-face: EBRO works standard

Flange connection: EN 1092 PN 6/10/16,  ASME Class 150

Marking: EN 19

Temperature range: -20 °C to +100°C, optional up to +250°C

Max. operating pressure: max. 6 bar

Body: Light metal full flange with inserted ring(stainless steel)

Impeller wheel: Stainless steel, optional mirror polished

Actuator: Electric actuator 230V/400V 50Hz/60Hz, 30 min-1 to 100 min-1


CE marking number: 0036

TUEV number: 9001:2008
