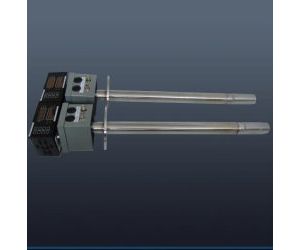

IMR - Model 6400-HT -High Temp Zirconia Oxygen Analyzer
IMR 6400 High Temp intelligent oxygen analyzer uses an advanced anti-interference circuit and an anti-volatile data protection function. The display will automatically switch to any range for the set limit concentration on the alarm.
The IMR 6400 High Temp series analyzer is a new kind of intelligent industrial instrument. It can test the oxygen content in the kiln on line, analyze, and do the comparison in order to achieve a low oxygen burning control and ensure a safe and efficiency process. Therefore IMR 6400 High Temp series analyzers can be widely adapted to power, chemical industry, metallurgy, petroleum, light industry, and in the field of textile combustion control. It also can be applied in electronic components, magnetic materials, and other high temperature sintering of trace oxygen analysis.
- Measure rage: 0 – 21% O2
- O2 Resolution: 0.1%
- Accuracy: 4. Probe Length: 1500mm (600-1500mm in 100mm segments)
- Temperature of flue up to 1300? (High temperature type)
- Temperature Resolution: 0.1?
- Air surplus coefficient range of the checked fume 0.1-99
- Response time 9. Temperature display range: 0 - 2000?
- Current output: 0 ~ 10mV or 4 ~ 20mA DC
- Working conditions: environment temperature 0 – 50? relative humidity < 85%
- Instrument working voltage: AC 220V±10% 50Hz±5%
- Warm up time of the zirconia tester heating furnace: About 20 minutes
- Heating temperature: PID control 15. Digital display: LED four bits nixie tube
- Correction range of back ground electric potential: -100mV -+100mV
- Communicative interface RS232 or RS485 (customer set)
- Intrinsically safe design: Exib II BT4
- Product Item #: 6400-HT
