Tideflex - Model Duckbill CIL - Series 2633 -In-Line Check Valve

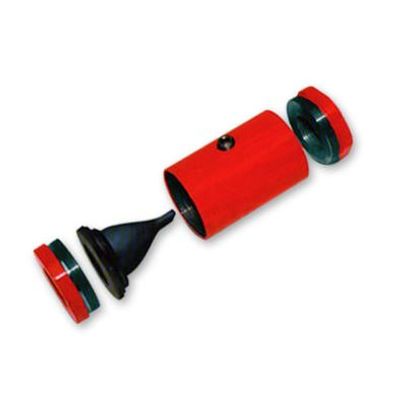

Manufactured on the same principle as the revolutionary all-rubber Tideflex Check Valve, the CIL - Series 2633 In-Line Check Valve is a simple in-line check valve for threaded end pipelines. Simple in design, the Series 2633 consists of a body, two endcaps and the working element - the Tideflex elastomer check sleeve. In the open position, the sleeve creates a wide, free passage proportional to the flow in the pipeline. On flow reversal, the sleeve closes slowly and completely. The silent, non-slamming Series 2633 In-Line Check Valve design eliminates water hammer and facilitates low head loss.
Containing no levers, packing, springs or interference fits to corrode or freeze, the valve is virtually maintenance-free. The only replacement part is the simple, rugged elastomer check sleeve. This small and simple in-line check valve is ideal for liquids, gases, powders, slurries and instrument or plant air, as well as in any environment where preventing backflow is critical.
The Series 2633 is manufactured in sizes 1/2 to 3" NPT. The check sleeve is available in a variety of elastomers to match specific service conditions.
Features
- Eliminates check valve chatter
- Seals 100% on reverse flow
- Can be mounted in any position
- Is ideal for pneumatic systems
- Available in sizes 1/2" to 3" NPT
Materials of construction
- Body
- Epoxy Coated Carbon Steel (Std.)
- PVC
- 304 SS
- 316 SS
- Special Alloys Available
- Elastomer Information
