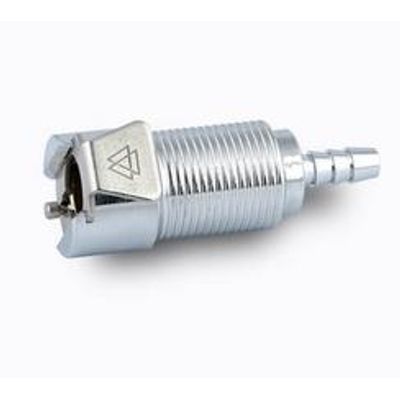

Insync - Model VCM 1703 3/16 -In Line Coupling Body
Part #: VCMD1703. Connection Type: Hose Barb. Material: Brass . Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: In Line Hose Barb. Tube Size:3/16" ID (4.8 mm ID). Valve Option: With Shut Off Valve.
Most popular related searches
- The quick coupling`s integrated shutdown valve is intended to guarantee leak-free connections, which raises the system`s output and causes annoyance.
- The pressure generated by the liquid flow through the tubings is contained by the shutdown valves. In order to guarantee a smooth liquid flow in the Fluid Handling Solutions, it maintains a consistent process.
- With its one-handed operation feature, the push button thumb latch simplifies the process of rapid joining and removing of connections.
- These quick couplings are comparable to several high-end couplings on the market.

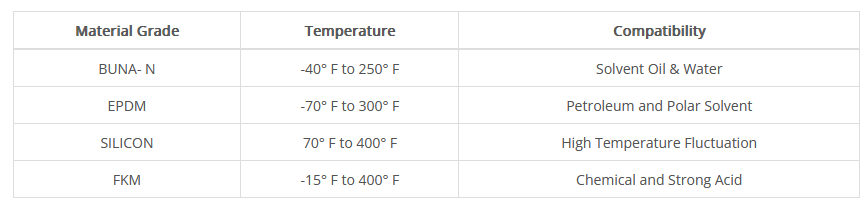

- For crucial applications, Insync provides O-rings in several material grades, including BUNA, EPDM, SILICON, and FKM.
- Main Body: Chrome Plated Brass.
- Valve: Natural Acetal.
- Thumb Latch: Stainless Steel.
- Valve Spring: Stainless Steel.
- External Spring: Stainless Steel.
