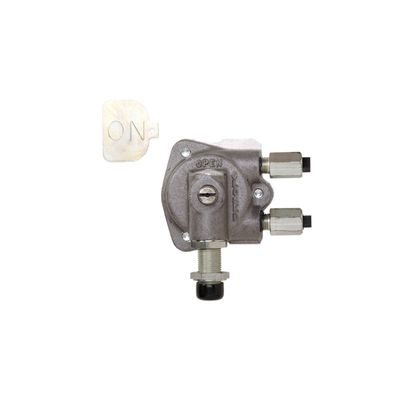

Continental - Model R-6572 -In-line Hydraulic Rotary Actuator
Our NH3 (anhydrous ammonia) hydraulic actuators are in-line rotary actuators (Catalog No. R-6572). As a leading manufacturer of hydraulic actuators, Continental`s in-line hydraulic rotary actuator is designed to be mounted quickly and easily on any NH3 metering device. Using standard 1/4" ports for hydraulic hook-up makes this shutoff easily integrated with any tractors hydraulic system. The R-9500 uses a rotor actuated ball valve insuring along and maintenance free life. Available in 1" or 1-1/4" models.
CAUTION:
- ADAPTORS ARE PRESET AT FACTORY.
- OVERTIGHTENING MAY CAUSE CASTING TO CRACK.
- ALWAYS USE BACKUP WRENCH ON ADAPTORS WHEN CONNECTING HYDRAULIC LINES.
WARNING: IN THE EVENT OF A TRACTOR POWER FAILURE WHERE IT BECOMES NECESSARY TO SHUTOFF THE HYDRAULIC ACTUATOR, DISCONNECT BOTH HYDRAULIC LINES AT THE ACTUATOR BODY AND MANUALLY TURN FLAG OF ACTUATOR TO THE "OFF" POSITIONS.
TO AVOID CROSS THREADING OR GALLING USE LEAD BASE ANTI-SEIZE THREAD SEALANT (AVAILABLE THROUGH CONTINENTAL).
- Standard 1/4" FNPT Ports
- Corrosion Resistant
- Stainless Steel Rotor
- On & Off Indicator Flag
- Easy Installation
- Low Maintenance.
