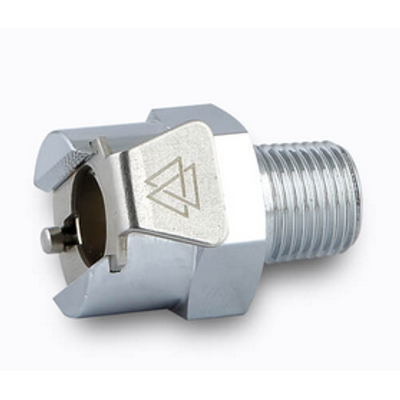

Insync - Model VCM 1004 1/4" NPT -In Line Pipe Thread
Insync Engineering productivity is increased by couplings that can adhere to any kind of connection. The shut-off valve feature in the Chrome plated brass VCL series ensures compliance with the quick release coupling, effectively protecting the system from pressure buildup caused by heavy liquid flow.
Most popular related searches
- Quick release couplings are made using materials like brass, PVDF, acetal, and stainless steel to improve process safety, reliability, and cleanliness.
- Panel mount Male Thread, couplings and connectors, and inline ferrule less polytube fitting are just a few of the many mounting choices that Insync offers. This allows its couplings to be compatible with a wide variety of pre-existing connections in the market.
1/4 NPT COUPLING BODY
- Part #: VCMD1004
- Connection Type: Panel Mount Ferrule-less polytube
- Material: Brass
- Material Finish: Chrome Plated
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Temp Range: -40°F to 180°F (-40°C to 82°C)
- Mounting Option: Thread 1/4 NPT
- Valve Option: With Shut Off Valve
Components:
- Main Body: Chrome Plated Brass.
- Valve: Natural Acetal .
- Thumb Latch: Stainless Steel.
- Valve Spring: Stainless Steel.
- External Spring: Stainless Steel.
