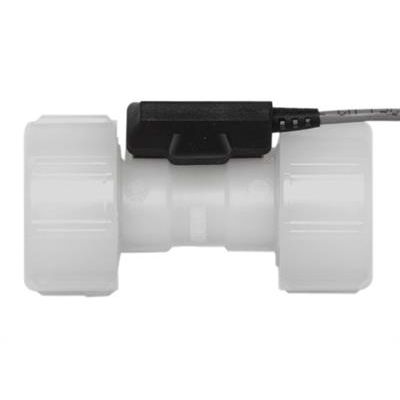

+GF+ Signet - Model Type 2100 -In-line Rotor Flow Sensors

The injection-molded PVDF body and ceramic bearings provide excellent chemical compatibility and long service in dosing and batching applications. Union piping and tubing connections along with removable NEMA 4X electronics allow for easy assembly and field replaceability. The 2100 can be used with DN8 (¼ in.), DN10 (3/8 in.) DN15 (½ in.) tubing, or DN15 (½ in.) piping for simple installation. End connections are available in PVDF for hose barbs, fusion socket or IR/butt fusion, and in PVC for socket or NPT thread.

Flow:

• Installs into pipe sizes: 0.5 in, DN15 Hose size: DN8, 1/4 in, DN10, 3/8 in, DN15, 0.5 in
• Operating range: 0.38 to 38 lpm, 0.8 to 10 gpm
• Max Pressure rating: 16 bar @ 20 °C, 232 psi @ 68 °F
• Power source: 5 to 24V DC, 1.5mA max
• Compatibility: 8900, 9900, 9900-1BC, 9950
• *End connector kits must be ordered separately. See accessories
• *-H version can be used with flare fitting. Flow range: 3 - 27 lpm

Advantages:

• Both clear and opaque fluids
• PVDF & ceramic wetted parts provide superior chemical compatibility
• Union ends for various connector types
• Non-magnetic turbine
• Operating range of 0.38 to 38 lpm (0.10 to 10 U.S. gpm)

Fields of Application:

• High-purity Chemical Dispensing
• Textiles
• Chemical Addition
• Water Addition
• Pump Protection
• Dosing
• Fertigation

Standards:

• CE
• China RoHS
• RoHS Compliant
• FCC
