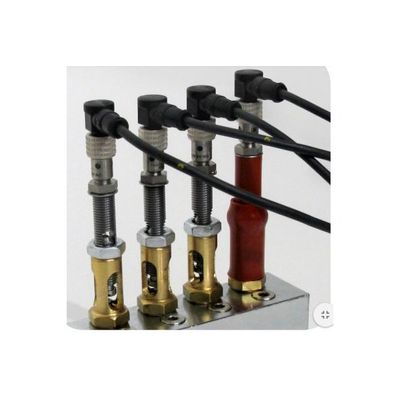

BDI - Model DD/DM -Indicator Pin Monitor
The Dualine Indicator Pin Monitor utilizes high quality sensors with built in LED’s. The sensor will read movement of the Dualine indicator pin during each lubrication cycle. This ensures that lubricant has reached the Dualine Valve. It will allow the user to monitor Dualine valve/pin operation remotely from any PLC.
Most popular related searches
- The Dualine Indicator Pin Monitor is available for any DD50 or DM60 Series Valve.
- Rated Operating Distance : 1.6 mm
- Supply Voltage : 10-36 VDC
- Output Current : 100 mA
- LED : Built-in
- Temperature : -13°F to 158°F (-25°C to 70°C)
- Output / Polarity N.O. / NPN, N.O. / PNP
- Polarity Reversal Protection : Built-in
- Power On Reset : Built-in
- IP Rating : IP67/IP68
- Material : Stainless steel V2A (housing)
- Connection : M12 connector
