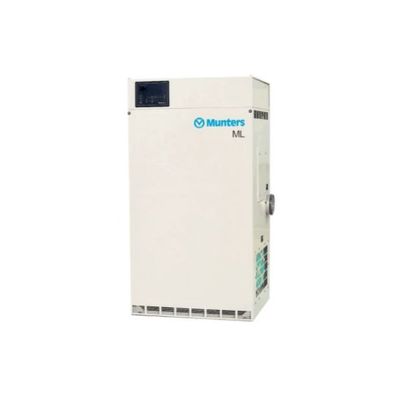

Munters - Model ML1350 -Industrial Desiccant Dehumidifier

• Requires minimal floor area
• Unique plastic rotor casing 100 % corrosion resistance
• Dehumidifies efficient down to -20ºC
• Dehumidifies to low dewpoint
• Interchangeable front and back panels - easier to install

The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.

• Process Air
• Rated airflow : 1350 m3/h
• Available static pressure : 300 Pa
• Reactivation Air
• Rated airflow : 490 m3/h
• Available static pressure : 300 Pa
• Total Power, Voltage & Current
• Total power : 15.16 kW
• 380V 3-50Hz : 24.4 A
• 380V 3-60Hz : 24.9 A
• 400V 3-50Hz Electrical : 23.6 A
• 415V 3-50Hz Electrical : 23.1 A
• 440V 3-60Hz Electrical : 22.3 A
• 460V 3-60Hz : 21.7 A
• 480V 3-60Hz : 21.1 A
• 500V 3-50Hz : 18.7 A
• Miscellaneous Data
• Operating temperature : -20 / +40 °C
• IEC Protective class (unit) : IP33
• IEC Protective class (electrical panel) : IP54
• Sound power level to room Lw(A) dB, all inlets and outlets ducted : 75 dB(A)
• Filter class : G3
• Dimensions
• WxDxH : 715 x 590 x 1510 mm
• Net Weight : 160 kg
• Dry air : 250 mm
• Wet air : 160 mm

• Blocked filter alarm
• Hours run counter
• Humidity control system
• Rotor stopped alarm
• Stainless steel sheet metal casing
• Modern Climatix control system
