Crisafulli - Industrial Duty Three-Point-Hitch Pumps

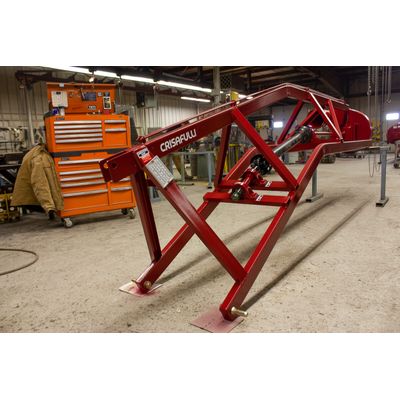

Designed to pump from steeply banked ponds, lakes, and canals Crisafulli Standard Industrial Duty Three-Point-Hitch Humpback Pumps are PTO powered and can pump at a 60 degree angle while keeping your tractor on the level. The HumpbackTM Three-Point-Hitch Pumps volute and impeller are manufactured from 3/8" A36 mild carbon steel. The volute and impeller are mounted on a 14` long, rigid pump frame with anti-friction ball bearings (five on double suction pumps), telescopic PTO shaft, three-point-hitch connection and a short discharge pipe with an oval band to adapt to CrisafulliTM discharge tubing. Impellers for 4", 6", and 8" models are single suction; for larger models (10", 12", and 16") the impellers are double suction.
- A choice of unique impeller designs gives you more flexibility; the closed impeller moves a high volume of water, while the open impeller can handle slurries, trash, dirt, and solids.
- Crisafulli Trailer Pumps are fabricated and customized specifically to your needs. While there are higher efficiency pumps out there for clean water, they often can`t handle the variety of materials Crisafulli Pumps can handle. When the water is dirty, you can count on a Crisafulli Pump to handle the grit without seizing.
- If you don`t want to use the power take-off on your tractor or other equipment for your trailer pumps, add a Crisafulli Power Unit. Put power right on the pump frame; choose diesel, electric, gas or LP fuel. Or put a trailer or skid mounted Crisafulli Power Unit to work alongside your Crisafulli Trailer Pump.
- Because Crisafulli Pumps come in a variety of configurations, you`ll always find a match for your needs.
- Add a slurry gate to make your pump a powerful mixer. Open the gate to mix, then close it to pump away the slurry.
- Steel construction. Crisafulli Trailer pumps are built from 3/8" (industrial) mild carbon steel for durability and strength.
- Crisafulli Trailer Pumps are built on single axle trailers with heavy duty drive shafts which enable you to move your trailer pump from site to site easily and safely.
- Sealed or waterlube bearings - Crisafulli Trailer Pumps are custom-designed to match the kind of material you pump.
- Crisafulli offers a full range of options to match your volume needs with discharge sizes from 4" to 24".
- Crisafulli Trailer Pump speed is matched to your PTO - 540 RPM is standard, but we also offer 1,000 RPM.
- Each Crisafulli Trailer Pump has a Crisafulli Impeller Inside - your assurance of quality, performance, reliability and long useful life
16" Pumps
- Regular Lift - 9,000 GPM, 75 HP
- High Lift - 10,000 GPM, 150 HP
8" Pump
- Regular Lift - Pump Curve: 2550 GPM, 25 HP
- Intermediate Lift - Pump Curve: 3600 GPM, 50 HP
- High Lift - Pump Curve: 4000 GPM, 65 HP
12" Pump
- Regular Lift - Pump Curve: 4600 GPM, 35 HP
- Intermediate Lift - Pump Curve: 6500 GPM, 100 HP
- High Lift - Pump Curve: 7000 GPM, 125 HP
6" Pump
- Regular Lift - 1,800 GPM, 20 HP
- Intermediate Lift - 2,200 GPM, 30 HP
- High Lift - 2,500 GPM, 50 HP
4" Pump
- Regular Lift - Pump Curve: 900 GPM, 10 HP
- Intermediate Lift - Pump Curve: 1000 GPM, 15 HP
- High Lift - Pump Curve: 1150 GPM, 25 HP
10in Pump
- Regular Lift - Pump Curve: 3500 GPM, 30 HP
- Intermediate Lift - Pump Curve: 5800 GPM, 75 HP
- High Lift - Pump Curve: 5500 GPM, 100 HP
10" RPM Curves
- 8" KX Series - 4,000 GPM, 115HP
- 12" KX Seriess - 7,500 GPM, 145 HP
- 16" KX Series Regular Lift - 9,500 GPM, 170 HP
- 16" KX Series High Lift - 11,000 GPM, 225 HP
