SIMATIC - Industrial Flat Panels

SHARE

Industrial Flat Panel monitors were extended for multi-touch versions with projected capacitive touch technology (PCT) for gesture and multi-touch operations. The PCT technology enables efficient and fast operation, even when wearing thin protective gloves. The devices responds to gestures and operator actions with up to five fingers simultaneously. For example, image contents can be panned, zoomed, or hidden components shown both intuitively and quickly.

Most popular related searches
industrial PC
ATEX certification
protective glove
workplace monitoring
marine monitoring
wear protection
shock and vibration
environment monitor
chemical protective
chemical protection

Benefits

  • 100% anti-glare glass front, scratchproof and resistant to chemicals (degree of protection IP65 at the frontside)
  • Automatic detection of spurious touching and operator actions, for example, touching with the ball of the thumb or soiling
  • Narrow metal surround protects the edges of the glass from damage
  • ATEX certifications for 15", 19" and 22" monitors and marine approval for 22" monitor are in pending.
  • Software support
  • Individual programming using the tablet functions of Windows 7/8
  • SIMATIC TIA Portal V13 with Windows 7
  • SIMATIC WinCC V7.3 with Windows 7
  • SIMATIC WinCC OA V3.12 with Windows 7

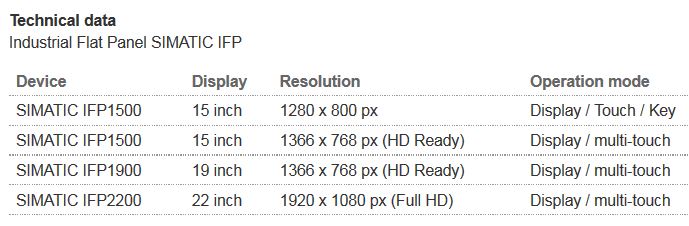

The new Industrial Flat Panel SIMATIC IFP is suitable for use as an industrial monitor with fast response times, for example, for jogging and plotting. Panels with widescreen displays are available in 15, 19 and 22 inch sizes as pure display devices or with touch screen operation. There is also a 15-inch touch version with function keys, a front USB port and a keypad.

They are connected via DVI-D or the new DisplayPort interface to an Industrial PC, which can be at a distance of up to 30 meters.

The new widescreen products have won the "iF product design award 2012".

Benefits

  • Robust widescreen devices with high long-term availability
  • Die-cast aluminum fronts, they are designed for maintenance-free, 24-hour continuous operation and also meet high-temperature, vibration, shock and EMC requirements
  • The energy-saving LED background lighting can be continuously dimmed by up to 100 percent and is especially long-lasting and very luminous when used in brightly lit working environments.
  • The widescreen monitors allow a clear display and user interface design as well as offering high resolution and very good readability from all angles.
  • Portrait mounting option for all display and touch units
