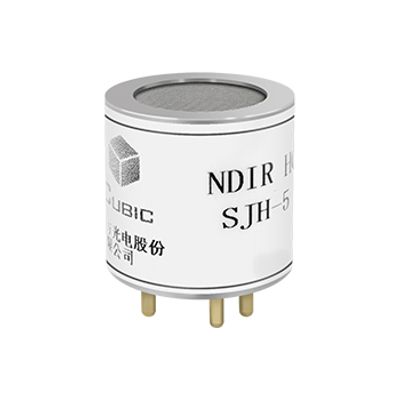

Cubic - Model SJH -Industrial Grade Infrared (NDIR) Methane (CH4) Gas Sensor

Miniature NDIR CH4 sensor SJH detect Methane（CH4）concentration from 0 to 100% based on NDIR technology which is superior than thermal catalysis and thermal conductivity technology.

It has advantages of convenient operation, accurate measurement, reliable operation, simultaneous output of voltage and serial port, and double beam design. It meets the different requirements of industrial field and laboratory measurement, and is widely used in gas detection and analysis in petrochemical, chemical, coal mine, medical and laboratory fields.

• NDIR technology with long lifespan and full measurement range
• Complied with the explosion-proof grade Ex iaⅡC T4 Ga
• Internal full range temperature compensation
• Diffusion sampling, stable performance

• High precision, high resolution 0.01%
• Compact size,fast response
• Corrosion prevention
• Easy install and less maintenance
• Compatible with digital and analog voltage signal output

--Measurement range:0-5% vol, 0-100% vol
--Measurement method:NDIR
--Accuracy:0～1%: ≤±0.1%vol;1～5%: ≤±(0.05%+5% of reading);5%～full range: ≤±10% of reading
--Warm-up:<10s
--Response time:T90＜25s at 20℃
--Working voltage:3.3-6.0V
--Working current:55-60mA
--Output voltage:0.4-2V/TTL
--Digital signal format:RS 232 data bit:8 ;stop bit:1; check bit: null
--Baudrate:9600 bps
--Working temperature:-40℃ to 70℃
--Dimensions:￠20*19mm (except pin)
--Output pin:5 pins
--Life span:≥ 10 years
--Ex-proof Level:Ex ia IIC T4 Ga

--Methane leakage alarming detector
--Environmental detecting and monitoring
--Gas drainage pipes monitoring
--Mine safety inspection
--Combustible gases storage
--CH4 Gas concentration meter
--Fire alarm system
