Badger - Industrial Handheld Meter

Badger - Industrial Handheld Meter

FromBadger Meter, Inc.

SHARE

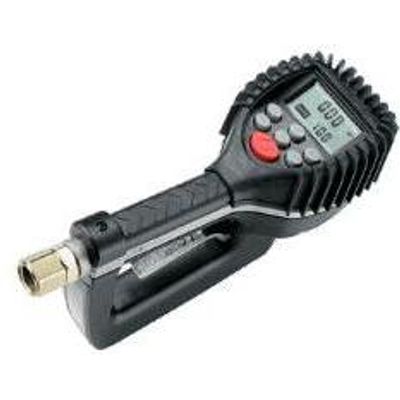

The Badger Meter Industrial handheld meter is designed to function in applications that require an accurate volume dispense measurement in water solutions or any other liquid substance. The handheld`s rugged, shock-resistant plastic cover is similar to that used for power tools. It protects the meter from harsh and demanding environments.

Most popular related searches

mechanical flow meter

chemical management

electric control valve

water monitoring system

utility metering

Applications: Petroleum, chemical, fuel management, lubrication, solvents and food products.

There are two modes an operator can select when utilizing a handheld meter. The manual free flow mode and preset batch mode. For manual mode usage, the operator holds the handheld in an activated position for the liquid to dispense a free flow amount that is easily displayed on the LCD. For preset batching usage, the operator activates the AUTO button to dispense preset quantities of liquid.

Oval Gear Driven Meter
Durable
Lightweight
Large, Easy-to-Read LCD Display
Ease of Operation
Totalization in Liters and Gallons
Dispensing Measurement in Liters, Quarts, Pints, Gallons
Max. Totalizer Number: 99,999 Gallons or Liters
Max. Dispense Volume: 99,999 Units
Max. Preset Volume: 99.9 Units
User friendly programming
Anticipation Feature for Greater Fill Accuracy
Calibration Factor for Different Fluid Viscosity
Changeable Units of Measure
One Programmable Preset Quality
Total and Resettable Total Display
Minimum 20,000 Cycles on Battery Life
Low Battery Indicator
Low Battery Safety Lock Out Feature
Ability to Save Settings if Power Interrupted
Uses Standard AA Batteries
Automatic Shut-Off at Preset Amount
Electrical Shut-Off
Precision Control Valve Operation
