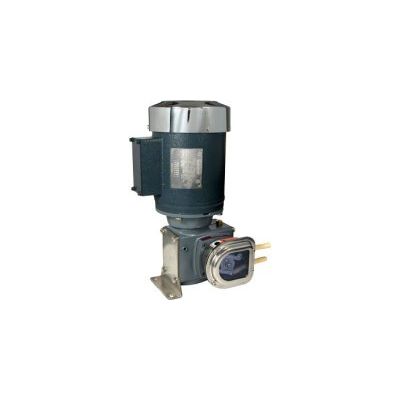

Flomotion System - Model Series 2001V -Industrial Hose Pumps

One size pumphead accepts five standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness. The 2001V Series pump system allows you to mount the controller on the wall...away from the harsh environment.

An optional tubing rupture detector will automatically shut down the 2001V pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique 2001V sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.

• Flows to 50.2 GPH, Pressures to 100 psi.
• Rugged industrial drive uses standard 56C face motors.
• Seal-less pumping technology.
• Self-priming – suction lifts to 30 ft.
• No check valves – few moving parts.
• Various long life chemical resistant tubing options available.
• Dry run capability.
• Remote wall mount controller with LED digital display & integral keypad in NEMA 4X enclosure.
• User selectable manual or automatic control.
• Automatic control via 0-10VDC, 4-20mA or RS485 inputs.

Motor

• 1/3 HP TEFC Inverter Duty.
• Standard 56C Face mounting flange.
• Explosion proof & washdown motors available.

Controller

• Wall mount with LED display.
• Integral 6 button keypad.
• Selectable manual or automatic control via 0-10 VDC or 4-20 mA.
• Remote start/stop capabilities.
• 4-20mA speed output signal.
• NEMA 4X enclosure.
• 115 VAC input, 230VAC 3-phase opt.

Mechanical

• Pump weight: 49 lbs.
• Controller weight: 3 lbs.
• Pump Finish: Stainless Steel.

Tubing Descriptions

• FLOPRENE - Thermoplastic elastomer
• TYGOPRENE XL-60 - PVC based thermoplastic
• NORPRENE(1) - Thermoplastic elastomer
• CHEMSURE(2) - Thermalset rubber

1 Registered Trademark of Saint-Gobain Performance Plastics
2 Registered Trademark of W.L. Gore & Associates
