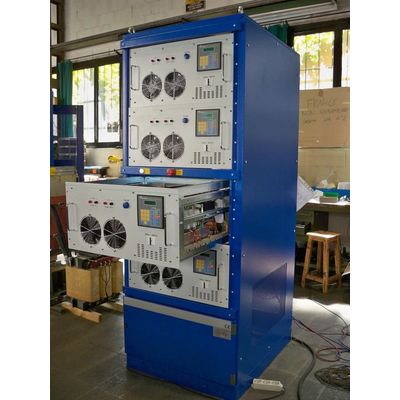

CBE - Model CYTEST -Industrial Laboratory System

Basic Technical features: AC input: 3 x 400V +/- 10% – 50Hz. DC voltage up to 250V. Zero battery Volt in discharge available with appropriate booster circuit. DC current up to 100A in charge or discharge mode. Duty Cycle: 100% in charge or discharge mode; @ maximum current rate. Output ripple negligible. Efficiency 0,77 typ. Power factor 0,9 typ. T.H.D 12% or less than 10% with appropriate filter. Transition time. From CH to DISCH. 130 milliseconds. Cooling: by forced air (fans). Ambient temperature up to 45°C. Protection grade IP 21. POWERMOSFETs linear regulation; no significant ripple figures on the D.C. output. The minimum dischargeable batteries voltage is also dependent of the circuit voltage drops. The modular CYTEST – LR system is an innovative product designed for automotive/industrial batteries testing for laboratory applications. The POWERMOS technologies allows to reduce the ripple current down to zero and allows better measures accuracy.
