AMETEK Spectro - Model MiniLab 153 -Industrial Machinery Oil Analyzer

SHARE

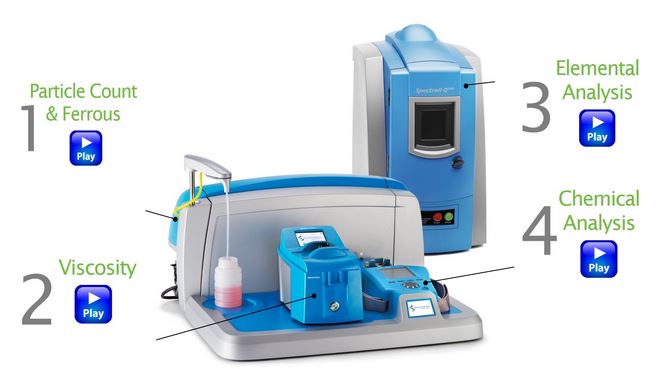

Oil analysis provides early indications of equipment wear and identifies the root causes of corrosion. On-site oil analysis eliminates the wait associated with sending samples off-site and enables immediate decision making. With four simple tests, the MiniLab 153 delivers comprehensive on-site oil analysis, providing immediate actionable results, saving time and reducing costs.

Most popular related searches
on-site oil analysis
oil analyzer
sample preparation system
oil analysis
sample preparation
oil analysis test
particle analysis
lubricant system
water monitoring
paper manufacturer

Highlights of this system include:

  • One product, delivering lab-quality analysis outside of the lab
  • Simplified workflow for the non-expert user, no chemist required
  • Simplified operation, data reporting and report interpretation via the TruVu 360 Diagnostic Sets with recommended actions.
The TriVector is a simple representation of the integrity of the lubrication system and the health of the machine itself. The Trivector indicates the degree of health in each vector.  In order to understand the Trivector condition, one must measure the key physical and chemical parameters of the oil.

The following questions can be answered:

The Minilab 153 uses the TruVu 360 Enterprise Fluid Intelligence software which includes an Asset Management database and a reference oil database which can be expanded by the end user.

It provides a standard sample trend reports and Diagnostic Sets with alarm limit templates, diagnostics, and recommended actions. It can support automatic email distribution of reports.

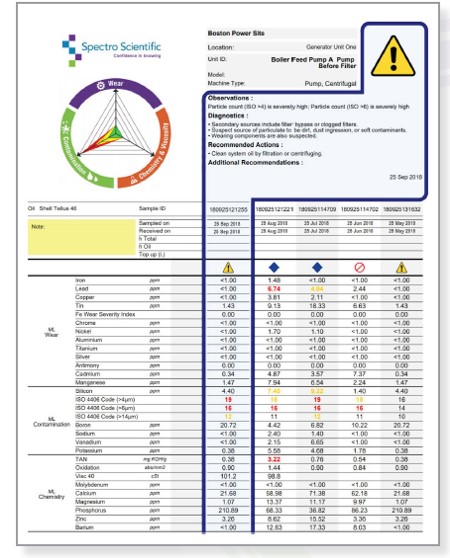

Color-coded Trivector reports provide a clear snapshot of machinery health by identifying parameters that are outside normal limits.

The MiniLab 153 is ideal for a wide range of industries such as:

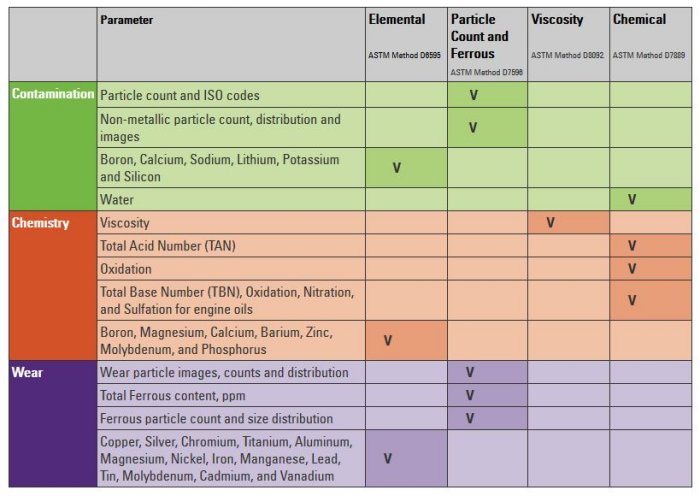

The most common oil analysis tests and typical alarm limits for several component types are shown below.  Component manufacturers establish alarm limits for their equipment for specified parameters.

Sample Preparation Equipment

Sample preparation equipment such as the Homogenizer, Ultrasonic Degasser, Electrode Sharpener and Consumables for 100 samples are included with each MiniLab 153 instrument.

Sample Preparation – 3 Simple Steps

  1. Sharpen electrode
  2. Homogenize the sample for better water measurement
  3. Ultrasonically degas the sample for particle analysis

Spectro Scientific consumables ensure high accuracy and repeatability

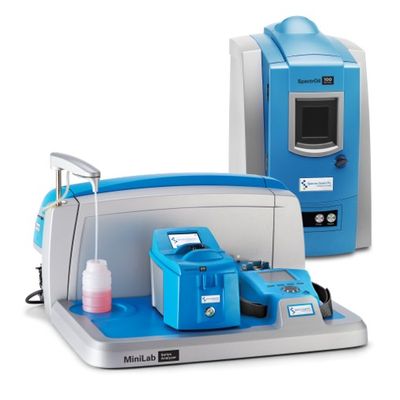

MiniLab 153

  • 71 cm x 214 cm x 66 cm (28” x 84” x 26”)
