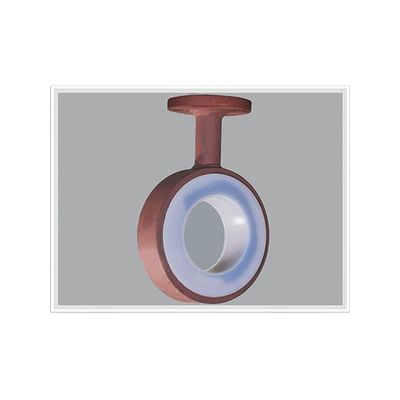

Faab - Model IT -Industrial PFA Lined Instrument Tee / Cross

• Product Name: INDUSTRIAL PFA LINED INSTRUMENT TEE / CROSS
• Product Code : IT
• Product Display Name : LINED INSTRUMENT TEE / CROSS

SIZE RANGE: 1” – 24”

MATERIAL OF CONSTRUCTION : Lined instrument tees are manufactured using Body material as per A105 forged flanges/ IS 2062 Gr. B for sizes 1" to 24", drilling and dimensions are as
per ANSI B 16.5 ASA 150#.

Material Test Certificates (MTC) can be supplied along with heat numbers on demands.

We manufacture standard instrument tees which are always in stock with us and can also manufacture special parts as per customer`s requirements.

LINING MATERIAL: PP (POLY PROPELENE) / HDPE (HIGH DENSITY POLYETHYLENE) / FEP (FLUORINATED ETHYLENE PROPYLENE) /
PFA (PER FLUOROALKOXY) / PVDF (POLYVINYLIDINE FLUORIDE)

Short Description: CS - PP / FEP / PFA / PVDF / HDPE  LINED INSTRUMENT TEE

Features & Specifications: PAINTING RED OXIDE PRIMER
