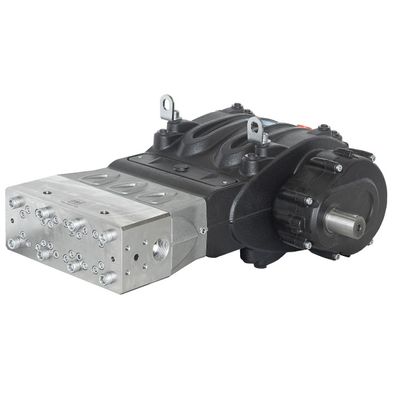

General Pump - Model SMH14 - SMH Series -Industrial Pumps

SMH Series: Inlet Pressure 75-100 PSI. Max. Fluid Temperature *86° F. Inlet Port Thread 1-1/2″ G. Discharge Port Thread 3/4″ HP-Special. Shaft Diameter ..1.969″/50 mm. Stroke 2.756”/70 mm. Pump Dimensions 34.6″x23.0″x14.13″. Crankcase Oil Capacity 304 oz./9 liters. Use GP Series 220 Oil (see page 60). Shipping Weight 573 lbs.
