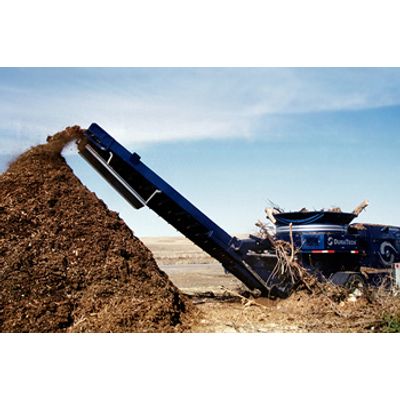

DuraTech - Model 3309 -Industrial Tub Grinder
The DuraTech 3309 industrial tub grinders are built to grind and built to last. Made to grind or regrind, the DuraTech 3309 series of industrial tub grinders are the most economical grinders on the market. With a diesel engine, a self-adjusting HPTO microprocessor-controlled clutch, and enclosed engine compartment with a self-cleaning air intake system, it’s efficient and affordable. The track powered unit is for those hard to get to grinding sites. The DuraTech 3309 industrial tub grinders are built to grind and built to last.
- 40” (101.6 cm) rotor-mounted on 4 1/2” (11.43 cm) shaft with 3 1/2” (8.89 cm) greasable bearings
- 18 fixed and 36 swinging hammers
- Dynamically balanced 1” (2.54 cm) thick screens in various sizes
- PT-Tech HPTO-12 clutch that is self-adjusting, microprocessor-controlled, and has a built-in torque limiter and brake
- Superior protection for engine and drive line
- 325 HP (242.4 kw) C9 Caterpillar Electronic Diesel Engine with reliable CAT service and easy access to engine
- Meets EPA Tier III Standards
- Lowest decibel reading in its class
- Enclosed engine protects engine from grinding debris
- Enclosed engine compartment with self-cleaning air intake system
- The enclosed engine compartment reduces engine noise and reduces maintenance
- Allows easy access to the engine from both sides
- The self-cleaning air intake system provides constant clean air to the radiator and the engine
- Single drive orbit motor drives the tub
- Governor-controlled tub speed
- Heavy-duty 120H drive chain
- Spring adjustable chain tension
- Continuous chain sprocket around tub
- Command console with optional remote control
- Master engine controls, gauges, and shutoff
- Electric over hydraulic controls for: clutch, governor, and stacking conveyor
- Optional 6 function remote controls: engine stop, tub rotation, stacking conveyor, and optional tub cover
- 30” (76.2 cm) wide belly belt carries the finished product to the stacking conveyor
- Impact resistant belt
- The tub cover is operated by remote control
Swing or Fixed Hammer Options: (Must choose one)
(40) Swing Hammers
(20) Fixed Hammers
Screen Options: (Must choose one)
Screen 1" Hole 1/2" Thick Hardox w/ Doubler
Screen 1 1/2" Hole 1/2" Thick Hardox w/ Doubler
Screen 2" Hole 1" Thick
Screen 3" Hole 1" Thick
Screen 4" Hole 1" Thick
Screen 4 3/4" x 7" Hole 1" Thick
Screen 6" x 9" Hole 1" Thick
Hitch Options: (Must choose one)
Pintle Hitch
Fifth Wheel Hitch Air Brakes W/Fifth Wheel Hitch
Fifth Wheel Hitch Air Brakes W/Goose Neck Hitch
Discharge Conveyor Drive Roller: (Must choose one)
Top Drive Roller
Magnetic Roller 21` 6" Conveyor
Remote Control Option: (Must choose one)
No Remote Control
6 Function Tub: Start, Stop, Rev Cnvyr: Up, Down Eng: Kill
6 Function plus Cover: Raise, Lower
Tub Cover
An operational characteristic of all grinders is that objects may be thrown out of the tub. Tub covers reduce the risk of potential injury or property damage from thrown objects. Proper use of the tub cover provides the operator with a means to help control the area over which thrown objects may fall. Combined with a decrease in the percentage of objects thrown from the tub, the tub cover is an effective means of reducing risk to personnel and property.
