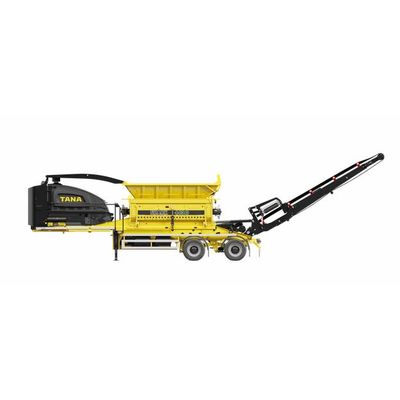

TANA Shark - Model 440Deco -Industrial Waste Shredder
TANA 440Deco industrial waste shredder offers unrivalled versatility with the ability to shred a wide range of difficult materials, such as mattresses, tyres, cables, ragger wire, municipal solid waste (MSW), and construction and demolition waste. This makes it possible to recover valuable materials and reduce waste volumes at the same time.
Unique versatility
- Excellent productivity
- Ease of use
- Easy maintenance
- Intelligently adjustable
Maximizing uptime
TANA Shark industrial waste shredders are designed for shredding the widest range of materials. The TANA Shark enables full control over the particle size from 50 to 500 mm (2” to 20”) with the lowest operating costs. Shredding can be performed in just one past, saving both time and money.
TANA Shark waste shredders are equipped with the TANA Control System (TCS) for controlling the operation and optimizing production with the right settings. TCS monitors and controls all machine functions. There are 12 pre-programmed operating programs for different types of materials and shredding purposes. In addition, extra customer specified programs can be added.
TANA ProTrack® remote management system provides detailed information about production capacity, eliminating the need to guess the outcome of the shredded waste capacities. The reporting system enables you to calculate production efficiency, including costs and profits per ton, as well as to evaluate different operators by comparing the quantities they have shredded during a certain time period, such as a single work shift.
- Rated power (SAE J1995) 399 kW (535 bhp) @2100rpm
- Nominal torque 440 kNm
- Rotor length 3000 mm
- Number of rotor knives 33 / 44
- Screen sizes 50, 76, 90, 100, 109, 120, 130, 167, 220, 275
- Screen area 2,75m2
- Emissions (diesel) EU Stage V/U.S. EPA Tier 4(f)
Large variety of customisation options – make it your own
- Robust construction – gets the job done in toughest operating conditions and with toughest materials
- Screens available – many sizes, desired particle size with one pass
- Selection of rotors available – durability, performance, ease of maintenance
- Easy access for maintenance – safe and quicker maintenance
- TCS material programs – preset, available for adjustment
- Reduced operating costs – service interval 500 h
- Adjustable conveyor angle – 30° ± 10°
- Touch screen display – user friendly interface for the operator
Options to choose, below listed some examples:
- Rotors
- With or without wear plates
- 33/44 knives
- Material configuration
- Bolt on cleaning combs (short/long)
- Magnet (Standard or HD), hydraulic position adjustment
- Oil resistant belt
- Ease of everyday use
- Engine heater
- Hydraulic oil heater
- Automated central lubrication
- Central lubrication
- Dust suppression
- Trickle charger
- Electric support legs
- Electric fuel tank filler pump
- Security / safety
- Extinguishers & Extinguisher system
