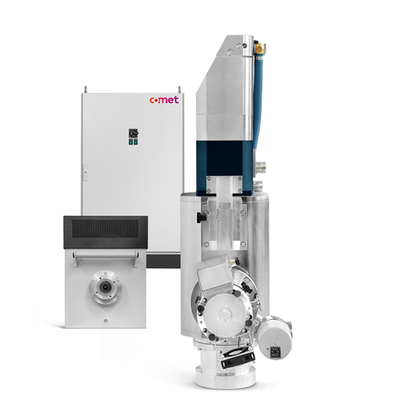

Comet - Model FXE 225.48 -Industrial X-ray Modules

SHARE
With its 320 W of tube power, the Comet FXE is a sufficiently bright source for quick acquisition in 2D and 3D applications. Proven Comet technology warrants stable operation at 225 kV allowing for the penetration of even dense parts. True X-ray Intensity - TXI, helps to deliver constant picture contrast resulting in a flicker-free acquisition that ensures the integrity of your inspection results. The Comet FXE allows you to detect, identify and measure features from millimeters to 4 μm and delivers superior analysis capability. With a modular design for quick replacement of critical parts, the FXE offers a low total cost of ownership and is designed for long-term usage. Its user-friendly interface provides quick access to all major functions, facilitating a faster workflow. Key specifications include 225 kV nominal voltage, stationary mobility, max resolution of 4 μm, max power range of 32 - 280 W, and minimum FOD of 6.75 mm.
Most popular related searches
industrial X-ray
integrity monitoring

Flexibility for a wider range of operation

You can’t quantify what you can’t see: With the Comet FXE you can detect, identify and measure features from milimeters to 4 µm. Combined with a high performing detector, this tube delivers superior analysis capability when it counts.

Unlimited lifetime

Our modular design facilitates quick replacement of critical parts, making the FXE’s total cost of ownership among the lowest in its class. You’ll never have to worry about running the tube at its limit, as you can always replace the wear-parts - even though the tube is designed to last, well beyond the expected life cycle of the module.

Easy to use for a faster workflow

Our user-friendly interface gives quick access to all major functions, including kV, tube current or target power, start-up routines, and focus adjustment. The Comet FXE is built to accelerate workflow creation for both you and your end-user.
