Inertial-Labs - Model IMU-FI-200T -Inertial Measurement Unit
The IMU-FI-200C Inertial Labs Inertial Measurement Unit is the latest addition to the Inertial Labs Advanced Inertial Measurement Units (IMU) family. Revolutionary due to its compact, self-contained strapdown, advanced tactical-grade Inertial Measurement Units, that measures linear accelerations and angular rates with three-axis tactical-grade, closed loop Fiber-Optic Gyroscopes (FOG) and three-axis high-precision MEMS accelerometers in motionless and high dynamic applications.
Officially classified as ECCN 7A994 (NLR - No License Required), IMU-FI-200C is a breakthrough, fully integrated inertial measurement solution that combines the latest closed-loop FOG and MEMS sensors technologies.

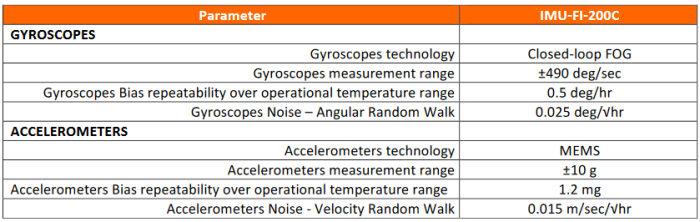

Fully calibrated, temperature compensated, mathematically aligned to an orthogonal coordinate system, the IMU contains up to 0.5 deg/hr gyroscopes and less than 2 mg bias repeatability over operational range accelerometers with very low noise and high reliability.
Continuous Built-in Test (BIT), configurable communications protocols, electromagnetic interference (EMI) protection, and flexible input power requirements make the Inertial Labs IMU-FI-200C easy to use in a wide range of higher order integrated system applications.
The Inertial Labs IMU-FI-200C models were designed for applications, like:
- Antenna and Line of Sight Stabilization Systems
- Passengers trains acceleration / deceleration and jerking systems
- Motion Reference Units (MRU)
- Motion Control Sensors (MCS)
- Gimbals, EOC/IR, platforms orientation and stabilization
- GPS-Aided Inertial Navigation Systems (INS)
- Attitude and Heading Reference Systems (AHRS)
- Land vehicles navigation and motion analysis
- Buoy or Racing Boat Motion Monitoring
- UAV & AUV/ROV navigation and control
