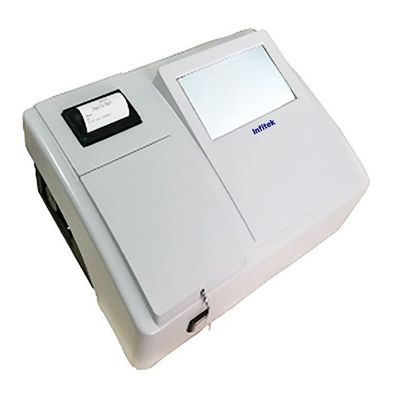

Infitek - Model BA-SA-120 -Semi-auto Biochemistry Analyzer
Back spectro photometry, 7 hard membrane filters, separate signal process circuit for each wavelength, filters select completed electronically, no mechanical movement. Hermetic solid-state optical system, low contamination of dust and dampness, long life time of hard membrane filters. Titanium alloy flow cell with small capacity and minimize cross-contamination. 200000 patients test data and 300 test programs can be saved. Adopt 7’’touch screen, 800×480pixels.
Most popular related searches
biochemistry analyzer
in vitro diagnostic
flow cell
membrane filtration
biochemistry
wavelength filter
in vitro
filter membrane
membrane separation process
photometry
- 200000 patients test data and 300 test programs can be saved
- Adopt 7’’touch screen,800×480pixels
- Optical system: 340-800nm
- Built-in thermal printer, USB for external printer
- 7 standard filters
- Back spectro photometry
- Analysis method: kinetics, end point, two point
- Light source: halogen lamp 10W/6V
- Optical system: 340-800nm
- 7 standard filter: 340, 405, 492, 510, 546, 578, 630nm wavelength, accuracy:±2nm
- Abs range: 0.000-4.000Abs, resolution: 0.001Abs
- Flow cell: titanium quartz alloy, 32uL; optical path: 10mm
- Temperature: PELTIER elements,37℃, Room,±0.1℃
- Precision: error<1%, drift<5mAbs/hr
- Printer: thermal printer, 57mm width paper
- Display: 7〃 touch screen,800×480 pixels
- CPU: Samsung S5PV210, Cortex TM-A8, 1GHz
- Memory: DDR2 SDRAM, 256MB Flash: 4GB
- Interface: 3 USB ports ,1 RS232 serial port
- Dimensions: 400(L)x290(W)x165(H)mm
- Package Size: 490(L)*410(W)*300(H)mm
- Temperature: 10℃-30℃
- Humidity: 30%-80%
- Power supply: AC100-240V 50/60Hz
- Language: English
