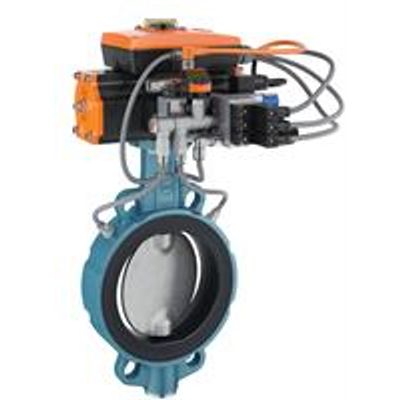

EBRO ARMATUREN - Inflatable liner INFLAS PRO
Series production is our business - the development of customised solutions for special applications is our passion. For more than 40 years we have been developing tailor-made solutions in close collaboration with our customers, for challenging fields of application that simply require more than a standardised valve product. This has resulted in countless variations. Many of them have been developed to series production, others are manufactured in small batches for select applications. We can only show the tip of the iceberg here. Challenge us!Most popular related searches
Nominal diameter: DN 80 - DN 600
Face-to-face: EN 558 series 20, ISO 5752 series 20, API 609 table 1
Flange connection: EN 1092 PN 6/10/16, ASME class 150, AS 4087 PN 16
Flange surface design: EN 1092 form A /B, ASME RF/FF
Top flange: EN ISO 5211
Marking: EN 19
Tightness check: EN 12266 (leakage rate A), ISO 5208 category 3
Working standard: EN 593
Temperature range: -40 °C to + 200 °C (depending on pressure, medium and material)
Max. operating pressure: max. 16 bar
CE marking number: 0036
TUEV number: 9001:2008
