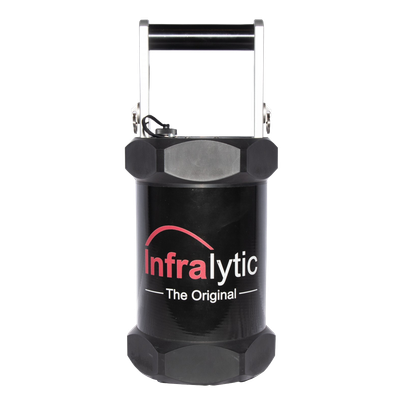

Infralytic - Model NG -Oil Sensor for Lubricant Thickness Measurement
The Oil Sensor NG2 is a lightweight, portable device designed to measure the thickness of lubricants with exceptional precision using infrared technology. It provides measurements rapidly in units of g/m² or mg/ft² and is renowned for its accuracy and stability, making it the preferred choice in industries such as rolling mills and automotive manufacturing. The sensor is widely adopted in the USA and Canada, boasting over 90% market share due to its reliability and ease of use. Its applications include measuring oils and dry lubes on various metal substrates such as cold and hot-dip galvanized steels, electro-galvanized steels, and different aluminum finishes. The device supports efficient data management with internal memory storage for up to 500 values, which can be easily accessed on a wide array of devices. This adaptability ensures it meets diverse industry needs, making it an essential tool for process optimization and quality assurance.
The lightweight, handheld, user-friendly Oil Sensor NG2 is the latest development of state-of-the-art technology, which enables more precise lubricant thickness measurements than any other technology or instrument. In only a second, the lubricant thickness is provided in either g/m² or mg/ft² . Through continuous optimization and adaptation to customer and industry requirements, the Oil Sensor NG2 provides an accurate, stable measuring device to precisely fit these needs. The Oil Sensor NG2 infrared technology was developed by Infralytic and has become the worldwide industry standard, having more than 90% market share in the USA and Canada. Customer usage ranges from rolling mills, in which initial oiling takes place for the purpose of corrosion protection, the application of pre-lube oils by metal processors to the stampers and then used all the way down the line to car makers.
The oil sensors are easy to use, displaying the oil thickness, plus the mean value and the user’s other parameters. The internal memory allows you to save up to 500 measured values and, if necessary, these can be called up on a PC, laptop, tablet or smartphone.
- Measurement Range: 0.1-6.0 Gm/Mtr2 (10-550 mgft2)
- Measureable Oils: All mineral, kerosene and vegetable based oils, plus paraffin based hot melts
- Dimensions: 13.25” H x 6” Diameter
- Weight: 7.5 lbs
- Battery Operation: 9 hours between charges
- Temperature ranges: Minimum 41 degrees, Maximum 113 degrees
- Calibrations Storage: Up to 32 calibrations can be stored in the menu
- Display: LCD, illuminated
- Languages: English, German, French,
- Hand-held device that uses infrared light technology to measure oil lubricant thickness quickly and accurately with any oil on any substrate
- Comes equipped with up to 20 calibrations pre-loaded
- Durable and capable for use in a wide variety of environments
- Simple, easy to use software
- Battery operation lasting for more than nine hours of use
- “Cal Wizard” software for creating custom (user) calibrations
- Connectivity to computers via USB cable
- Bluetooth feature
Oils and dry lubes on metal and aluminum substrates.
Typical calibrations include: Cold Rolled Steel, Hot dip galvanizes steel, Electro galvanized steel (pure and phosphated), Galvanneal, Aluminum (Mill and EDT finishes)
