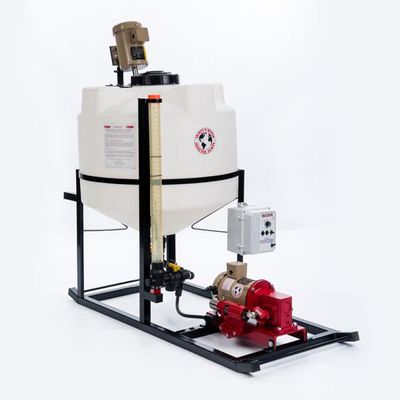

Inject-O-Meter - Chemical Feed System
Inject-O-Meter chemical feed systems are simple yet functional in design. These systems are offered in both simplex and duplex styles for maximum versatility. Frame designed for easy portability. Let Inject-O-Meter design and build a chemical feed system for your specific
needs.
Most popular related searches
- 85 lbs simplex ,120 lbs duplex (all models except 69-I) Weight for 69-I: 225 lbs simplex, 275 lbs duplex
- Built rugged for years of trouble free service
- High range of operating pressures (150 psi)
- All wetted parts made of 316 Stainless Steel (other materials available please see the corrosive chemical section in the catalog for details)
- Gear reducer: heavy duty, double shafted (15:1 standard), call for other speeds
- O-rings: Viton®, EPR, Aegis, and Kalrez® for all of your chemical handling needs
- Vee-packing: N-buna, Viton®, Teflon® and special packing with a mixture of 2 styles
- Valves: 316 stainless steel (Kynar®, Polypropylene are available as well)
- Ball Checks: 316 stainless steel (Ceramic and Teflon® are available as well)
- Springs: 316 stainless steel (Hastelloy C available on certain models)
- Tanks sizes: 65 or 110 gallon
- Agitation: air or mechanical
- Plumbing: Polypropylene (comes with everything needed to chemigate)
- MAX-94™ Valve: multi-directional injection check valve needed to meet regulatory laws for chemigation
- Cal-O-Meter™: is the calibration site tube on the system that allows you to monitor the injection rate, made from highly resistant polymers
