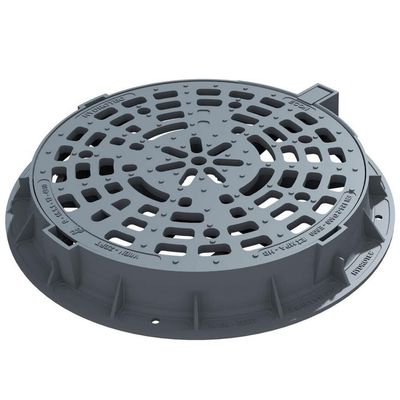

Hydrotec - Model ECON 600 D400 -Inlet Grating Manhole Cover
Innovative automatic closing system with 3 flexible bars. Hinders unauthorised opening = anti-theft. Through the positioning of the locking points the cover is centred in the frame and is frictionally locked.
Most popular related searches
Frame
- the four pockets in the frame allow for the use of customary dirt catchers 3 point locking system
Hinge
- simple ergonomic opening of the cover
- 120° position of inspection, 90° lifting position and blocking against unintentional closing of the cover
Insert
- changeable dampening HYDROpren insert
- L-shape hinders vertical and horizontal contact to iron
- long life, high abrasion stability for extreme loads Waterway
- ca. 1.050 cm²
- Clear opening 600mm
- Loading class D 400
- Construction depth 100mm
- Outer dimensions 785mm
- Weight 77 kg
- Pieces per pallet 9pcs.
- Material Cover cast iron
- Material frame cast iron
- Insert damping HYDROpren-insert
- Standard DIN EN 124-2
- Locking system locked
- Hinge with
- Frame variation flange frame
