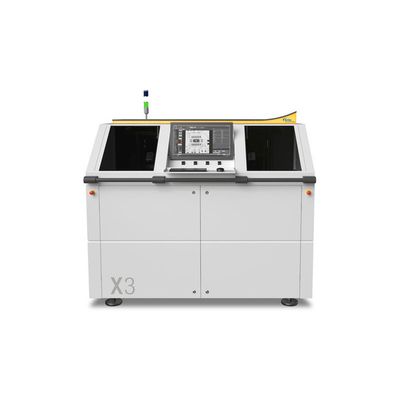

Nordson - Model AXI X Series -Inline X-ray Inspection System for High-Volume PCB Production
The X-platform series is a dedicated high speed inline automated X-ray inspection system for the inspection of PCB-assembly boards for single/multipanels or samples in trays. The system offers market leading inspection speed and is ideal for low-mix high-volume production environment.
Most popular related searches
X-ray inspection system
X-ray inspection
inspection system
PCB
inline inspection
radiation dose
radiation scanning
System
- Footprint : 1630 mm (H) x 1800 mm (W) x 1575 mm (D)
- System Weight : 2.800 kg
- Power Consumption : max. 6kW
- Line Voltage : 400 VAC, 50/60 Hz 3 phase, 16 A / 208 VAC, 50/60 Hz 3 phase, 25 A
- Operation Temperature : 15° - 28°C optimal 20° - 25° C
Inspection Features
- Max. sample size : 460 mm x 360 mm
- Max. inspection area : 460 mm x 360 mm
- Min. sample size : 80 mm x 80 mm
- Sample thickness : 0, 8-10 mm
- Max. sample weight : 3 kg
- Angle shot capability : up to 40 deg
- Resolution : 3-4 µm/pix
Options
- Barcodereader
- Low-dose radiation filter
- Auto BCR scanning station (x-y gantry)
- Semi Compliance
X-ray System Features
- High Speed AXI System for Inline configurations
- Microfocus X-ray tube (sealed tube / maintenance free)
- Multiple programmable motion system with linear drives
- Digital CMOS flatpanel detector
- Automatic grey-level and geometrical calibration
- Barcode scanner for serial number and product type selection
- Full product traceability via customized MES-Interface
Highlights
- Hardware setup dedicated to PCB inspection
- High Speed setup for In-line pass through configuration
- High oblique angle
- Low dose radiation filter
