AIC - Model TH3-RT -Innovative Temperature Probes

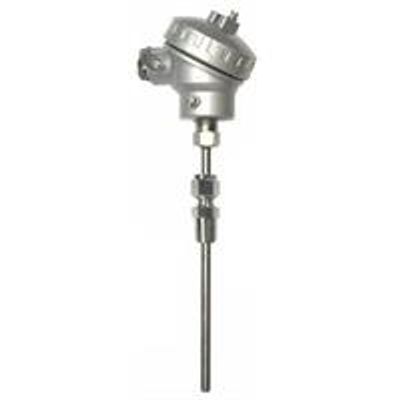

The TH3-RT temperature probes are extremely compact and incorporate an electronic circuit which monitors the inbuilt Pt100 (100 Ohm RTD) temperature sensor and converts its value to a 4-20mA output. The temperature range is factory configured to provide optimum accuracy and stability. On board zero and span adjustments allow the calibration to be tuned to match calibration standards or external equipment. The design of the probes allows insertion into a thermowell - available as an optional accessory, through an optional adapter or into a ¼" socket. The probe stem is constructed of 316 stainless steel and the head of die cast alloy. Also available to order are thermocouple probes with a 4-20mA output and direct connect RTD and thermocouple probes.
