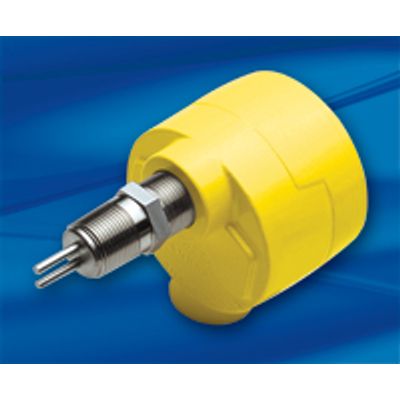

FCI - Model FlexSwitch FLT93S -Insertion Flow Switch
The FLT93S insertion type FlexSwitch for flow and temperature monitoring represents the first true technological breakthrough in thermal technology in over a decade. This product was designed for heavy industrial environments including high temperature and high pressure. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100°F. The FLT93S is easily field-configured or factory preset, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements.
- Pump protection
- Cooling water/heat exchangers
- Drain line flow
- Safety spray nozzle monitoring
- Oil well system testing
- Relief valve monitoring
- Venting assurance
For Flow Service - Setpoint Range:
- Water-based Liquids:
- 0.01 to 3.0 fps [0.003 to 0.9 mps]
- Hydrocarbon-based Liquids:
- 0.01 to 5.0 fps [0.003 to 1.5 mps]
- Air/Gas:
- 0.25 to 120 sfps [0.08 to 37 smps] at standard conditions of 70° F [21.1° C] and 14.7 psia [1.013 bar(g)].
- Accuracy: (whichever reading is higher)
- Liquids: ± 0.5% reading or ± 0.04 fps [± 0.012 mps]
- Gases: ± 0.5% reading or ± 2 sfps [± 0.06 nmps]
- Accuracy: ± 2° F [± 1° C]
- Repeatability: ± 1° F [± 0.6° C]
Response Time: As low as 3 seconds
Enclosure: Powder coated aluminum enclosure is rated for hazardous location use Groups B, C, D, E, F and G, CENELEC EEx d IIC and resists the effects of weather and corrosion per NEMA/CSA Type 4X (equivalent to IP66). Stainless steel is available as an option.
Agency Approvals: FM, CSA, CENELEC, ATEX, CE Mark, T4 Rated (System Approval) and CRN.
Materials of Construction: All-welded 316L stainless steel for all wetted surfaces. Hastelloy C, Monel 400 and Titanium are available as an option.
Process Connection:
- Standard: 0.75 inch male NPT.
- Optional: 1 inch male NPT, flanges or retractable sensing element.
Insertion Length:
- 1.2 inch [30 mm]
- 2 inches [51 mm]
- 4 inches [102 mm]
- 6 inches [152 mm]
- 9 inches [229 mm]
- 12 inches [305 mm]
- 18 inches [457 mm]
Customer specified lengths are available as an option.
Operating Temperature:
- Standard: -40° to +350° F [-40° to +177° C]
- Optional: -100° to +500° F [-73° to +260° C] or -100° to +850° F [-73° to +454° C]
- Operating Pressure: To 3500 psig [240 bar(g)]
- Operating Temperature: -40° to +140° F [-40° to +60° C]
- Input Power: Field selectable 115 ± 15 Vac or 230 ± 30 Vac, 50/60 Hz; 21 to 28 Vdc or 18 to 26 Vac; 7 watts maximum.
- Relay Contacts: Field configurable dual SPDT or single DPDT rated 6 amps at 115 Vac, 240 Vac or 24 Vdc. Hermetically sealed relays are available as an option.
- Output Signal: Analog DC voltage related to flow or level/interface signal and proportional to temperature.
- Electrical Connection: 1 inch female NPT
- Remote Configuration: Available as an option with customer specified interconnecting cable length.
Factory N.I.S.T. calibration in air or water is available as an option for customer specified setpoint(s) or a flow curve based on the media ranges specified above.
