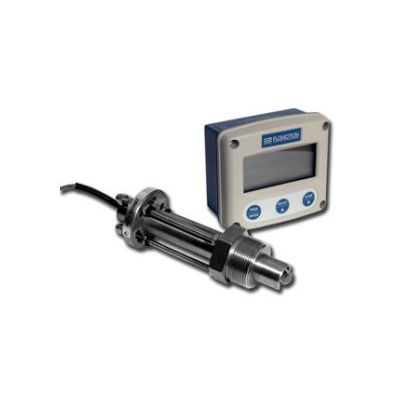

Flomation System - Model M2540 / F110P -Insertion Paddlewheel Flow Sensor & Rate Indicator & Totalizer

FromFlomotion Systems, Inc.

SHARE

The Model 2517 Insertion Paddlewheel Flow Sensor provides a reliable and economical means of monitoring flow. One size sensor is field adjustable for use in 1.5" to 24" diameter pipes. The Model F0110 Battery Powered Indicator simultaneously displays both Rate and Total on a large alphanumeric LCD display. Easy set-up is accomplished via the front panel three-position keypad.

Most popular related searches

paddlewheel flow sensor

boiler feed water

condensate pump

condensate pumping

Typical Applications

Potable Water
Cooling Water
Irrigation Systems
HVAC
Condensate
Pump Protection
Boiler Feed Water
Groundwater

Power: 24VDC
Output: Square Wave
Pipe Size Range: 1.5" to 24"
Velocity Range: 0.3 to 30 fps
Flow Range: 1.65 42,336 GPM
Accuracy: +2% of full scale
Repeatability: +0.5% of full scale
Temperature Range: 200° F maximum
Pressure: 250 PSI maximum @ 70° F
Process Connection: 1.5" MNPT
Conduit Connection: 0.5” FNPT
Weight: 2.5 Lbs.
Cable: 2-conductor shielded twisted pair, 22 AWG, 25’ standard, 200’ max.
Options: Hot tap configuration, stainless steel construction
Wetted Materials
- Body & Fitting: 316 SS
- Rotor: Stainless Steel
- Shaft: Tungston Carbide
- O-ring: Viton

Indicator Specifications

Display: Multi-function LCD
User Interface: 3-position keypad
Input Signal: Square Wave
Output: Passive open collector type
Battery life: 3-5 years
Enclosure: Corrosion resistant ABS, Wall mount
Rating: Nema 4X
Temperature Range: -22° F to 150° F
Weight: 1.5 Lbs.
Options: Loop powered scalable 4-20mA output, AC powered w/2 relay outputs, explosion proof, dual sensor input
