Current accuracy : ≤0.5 % of current range at 100 nA to 10 mA
Current resolution : 011 % of current output range
Dimensions in mm (W/H/D) : 25 X 24 X 11 cm
Light Source (LS) wavelength range : 785 ± 1 nm
LS Fiber optic connector : FC
LS Stability : ± 0.1 nm (-20 to 55 °C)
Maximum current in Ampère : ±40 mA
Maximum number of channels : 1
Maximum number of WE sharing AUX and REF : 2
Measured current resolution : 0.025 % of current range (1 pA on lowest current range)
Measured potential resolution : 0.012 % of potential range
Multichannel instrument : NO
Number of current ranges : 8
Number of current ranges remarks : ±1 nA to ±10 mA
Number of potential ranges (galvanostat) : 2
Number of potential ranges remarks (galvanostat) : ±100 mV to ±1 V
Operating modes : Bipotentiostat; Potentiostat; Galvanostat
Optical power output : 500 mW (375 mW typical)
Output power stability : ± 1 %
PC interface : USB
Potential accuracy : ±0.2 %
Potential range in volt : ±4 V
Potential resolution : 1 mV
Power : 5 V DC
Raman shift : 0 - 2850 cm-1
Spectral line width : <0.2 nm FWHM
Spectrometer (SPM) Detector : 2D CDD Array, Back thinned TE Cooled
SPM A/D resolution : 18 bit
SPM Dynamic range : 85000 : 1
SPM Fiber optic connector : SMA 905
SPM Integration time : 8 ms to 60 min
SPM Optical resolution : 7 – 11 cm-1
SPM Pixels : 1044 x 64
SPM Signal-to-noise ratio : 1000 : 1 (at full signal)
SPM Stray light : < 0.08 % at 600 nm; 0.4 % at 435 nm
SPM Wavelength range : 785 - 1010 nm
Weight of the instrument in kg : 3.4

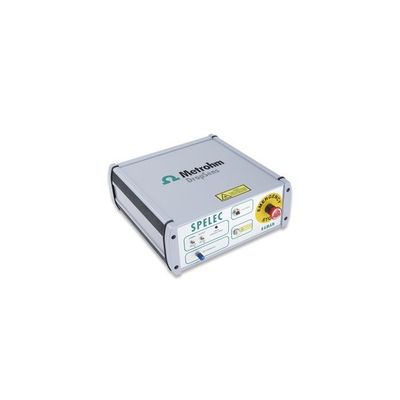

Metrohm - Model SPELEC RAMAN -Instrument for Performing Spectroelectrochemical Measurements

Specifications:
