Tulderhof - Insulated Fan Doors
Insulated fan doors from Tulderhof fit most V-belt driven exhaust fans. The doors are made out of 2 mm formed steel. On one side a thick 18 mm insulation layer is glued. The soft insulation layer closes draught free on the frame of the exhaust fan. The door can be closed with a key. A hollow pipe is optional and is used as a support when the door is open (see picture).

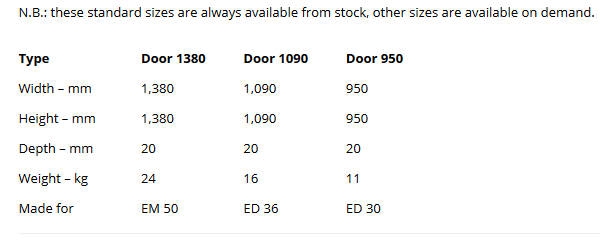

We can make the doors any size you need. Standard sizes are 1,38m x 1,38m for EM50, 1,09m x 1,09m for ED36 and 0,95m x 0,95m for ED30 fans. These sizes are always in stock.

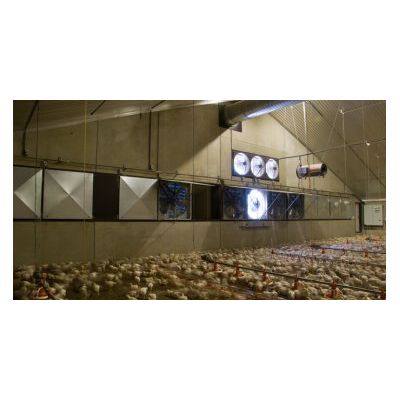

Now we also offer insulated double doors for EM50 fans like the image below. This is an effective solution when the fans are not directly next to each other. If you require more information, contact Tulderhof.
