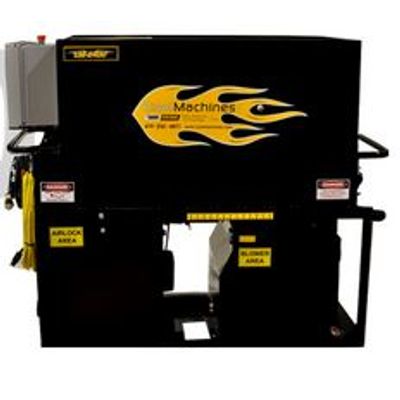

Insulation - Model CM 2400 -Insulation Blower

Matt Harvey Quality Handyman Services, LLC (Lakeport, Michigan)

… Quietest Insulation Machine

This is the quietest insulation machine I have ever heard. For the size of my pole barn (2,500 square feet insulated to R-38 in less than one hour). I was amazed at how quickly this machine finished the job.

Frank Justice Justice Custom Builders, Goodrich, MI

… Replacing All My Machines

I love this machine! I am going to sell all 6 of my (another brand) and replace them with the CM2400!

Dave Washington State Insulation Company

… Works Exactly As Described

The CM2400 works EXACTLY as described! Barry has been very attentive and knowledgeable in setting up our CM2400 for wall spray. He follows up immediately and we appreciate it.

Tom Energtechs

… We Love Our CM2400

I just wanted to let you know how much we love our 2400, a year in. It is so fast, and does wall jobs really well, quiet, it is just awesome. We love it-compared to a stinkin [another brand], it’s not even remotely close

Airlock Options

• 12 long and 12 diameter
• 16 long by 12 diameter

Blower Options and Power Requirements

• Standard: Two Blower (120 volt): Requires double input 20 amp input
• Standard: Two Blower (240 volt): Requires single input 30 amp
• Upgrade: Four Blower (240volt) : Requires single 50 amp input
• Premium: 5 horsepower Positive Displacement blower: Requires 240 volt/50 amp input

Generator Size

• For 2-blower: 7,500 watt
• For 4-blower: 15,000 watt
• For 5 h.p P.D blower: 15,000 watt

Weight and Hopper capacity

• 720 lbs
• Main Hopper: 15 cu./ft. (3 bags cellulose or 1/2 bag fiberglass)
• Hopper Extension: 30 cu/ft (6 bags cellulose) with up to 40 cu/ft. custom-made (8 bags cellulose or 1.5 bag fiberglass).

Dimensions

Optimized to fit in your truck or trailer. The narrow width allows for generous working and loading space. 58″ long x 22″ wide x 48″ high

Standard Features and Benefits

• 150 ft. remote cord w/cord hanger, offers convenient handling of remote device.
• Slow speed positive feed scalping augers extend component life while increasing safety.
• Two integrally mounted 3 stage blowers w/check valve protection outside air and reduced filter maintenance. (optional four blower or P.D. blower)
• Modular design with see-thru access panels for quick troubleshooting and maintenance.
• #50 roller chain and hardened sprockets are rugged, corrosion resistant and positive driving.
• High quality powder coating provides a long lasting corrosion resistant finish.
• Stainless slide gate control provides precise control of fiber.
• Up to 40 cu./ft. hopper capacity fiber storage.
• High torque (1250 in./lb.) motor/reducer drive provides surplus power
• High speed stainless shredder maximizes fiber conditioning coverage and production.
• Large 12 x 12  and 12 x 16 quick release airlock is a durable easily serviced component.

Safety has been an all time issue for insulation machines for contractors. CM 2400 gives you latest tools and features to make safer production. Below you will find few of it’s safety features:

• Safety Features: kill switch and manual controls promote increased operator safety and quick hazard response.
• Manual thermal overload protection of all motors and electrical components.
• Deluxe voltmeter for quick electrical diagnostics.

• Material: Different materials may produce varying results.

• Lbs p/hour: Based on industry-wide standards of 100` hose with 12` rise

• Bags p/hr: Standard bags (lbs noted by material)

• Sq Ft p/hour: Based on R-19 depth
