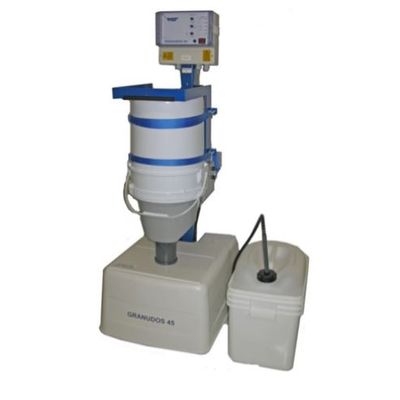

Sterling - Model Granudos 45 -Integrated Dosing System
The Granudos 45 dosing system doses calcium hypochlorite directly from the drum. It uses acid that for the adjustment of pH in the pool water and additionally to avoid scaling within the dissolving equipment the acid is dosed within the system directly from the container.
Chlorine and acid are dosed separately at intervals to the dissolving system from where the very low concentrated chlorine solution is conveyed by a venturi nozzle to the pool water. Dosing manually/continuously or linked to any auto-control system with on/off output. Safety check and monitoring of flow, level, pressure and chemical empty. Switch off dosing in case of malfunction.
- Suitable for pools sizes up to app. 1500m3 pool volume
- 230V single phase supply required
- Minimum water supply pressure 0.2bar
- Maximum pressure at the injection point 1.2bar (depending on pre-pressure)
- Maximum chlorine output 2 kg/hr
- Maximum Acid output 3ltr/hr
- Booster pump: 230V with output of app. 1000ltr/hr drawing 0.33kw/h
- Dimensions w 60 x d 70 x h 140cm
- Weight app 50kg
Vertical support: Rotating drum carrier, steel, zinc and blue powder coated, drum fixing device with clamp bands and safety belt.
Chlorine dosing: Dosing hopper to be screwed on the chemical drum, with gear dosing motor 24VDC with dosing screw and holder, solenoid knocker, heated nozzle, empty switch and cover. Hopper for 25 or 40kg calcium hypochlorite drums.
Acid dosing: With peristaltic pump 2,5 l/h, carbouy lance with level switch for empty indication of acid container, injection valve to the flushing and dissolving tank.
Dissolving system for the chemicals: Pre-filter, flushing tank, booster pump, venturi nozzle, mixing and dissolving cyclone. monitoring switches for level in tank min/max, suction power (flow) of venturi and pump pressure.
Control system
- Housing IP 54
- Programme selector for 8 service and test programmes.
- Adjustment of the dosing rates chlorine and acid by 2 knobs.
- Relay system to assure dosing of only chlorine or acid or none.
- Inputs for external dosing control with on/off signal 230 volt or non-volt contact
for free chlorine /redox and pH) - Monitoring switches with each separate indication with 5 red lamps.
- Non volt fault remote control
- Calcium Hypochlorite is an excellent chemical to disinfect pool or drinking water: best water quality.
- High chlorine concentration (app. 70% chlorine).
- Best storage possibilities of the Calhypo.
- Safe and easy handling.
- No calcification or sludge deposits.
- Low danger potential.
- Easy and fast installation.
- Easy and very economical to maintain.
- Reliable operation.
