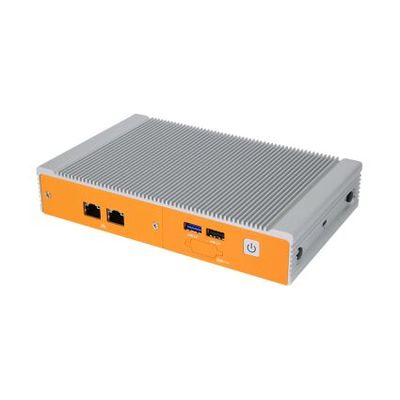

OnLogic Helix - Model 330 -Intel Elkhart Lake Industrial Edge Computer w/Additional LAN

Helix 330 was built to thrive at the edge, and makes a perfect addition to the innovative Helix Series. Powered by the Dual-Core Intel Celeron N6211, or Quad-Core Intel Pentium J6426 processors, which have been specifically engineered for IoT applications, Helix 330 offers a unique combination of features, power and connectivity, making it an ideal Industrial IoT gateway, edge device or embedded controller. Only need dual LAN? Check out the Helix 310.

At less than 1.5" tall, the Helix 313 can be installed in almost any industrial application, with support for DIN, and wall mounting. Sensitive internal components are mechanically protected from dust, debris, chemicals, and moisture with OnLogic`s integrated Hardshell™ technology. Meanwhile, the absence of any moving parts dramatically improves the lifespan and reliability of the system. Its advanced industrial design includes a filtered DC input power supply with a 12~24 V range. All of the I/O has been immunity tested to both the EN 55035 for IT equipment and to 60601-1 4th edition Medical immunity - including the 15kV ESD & 10V/m RF immunity tests. Medical immunity protects the computer at a level almost 2x and in some cases up to 30x more than the CE computer standard required limits. The HX330 is currently being safety listed under UL/IEC 62368-1. When used as communication equipment, this unique computer will integrate seamlessly into UL 61010 (former UL 508) applications.

Connect Helix 330 to your existing infrastructure and take control of your data, with standard I/O that includes 3x USB 3.2 & 3x USB 2.0 ports, 1x DB9 (RS-232/422) optionally configurable as COM (CAN can be configured on request), 3x DisplayPorts, 3x 1 GbE LAN ports (4x LAN available when equipped with a Pentium CPU). Whatever you need to connect with, or connect to, Helix 330 has you covered.
