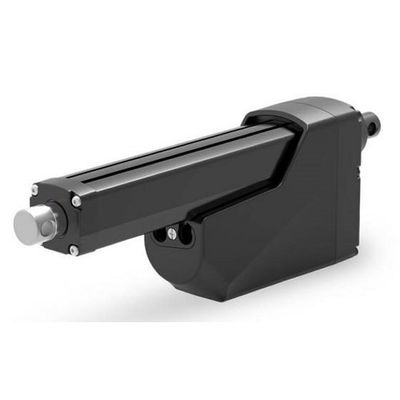

Moteck - Model MK35 -Intelligent Actuator With PCBA Control Board Inside
MK35 is an intelligent actuator with PCBA control board inside. Its robust mechanical design can provide up to 10,000N thrust, and meets IP69K waterproof protection. The built-in control circuit board has the protection function of monitoring current and voltage, and there are various control options to suit the user`s system. MK35 is truly a favorable choice for applications such as agriculture, construction and industrial automation.
Most popular related searches
- Input voltage: 24V DC
- Max. load: 10,000N (Push/Pull)
- Max. static load: 18,000N (Push)
- Max. speed at no load: 40mm/sec (typical value)
- Speed at full load: 8mm/sec (typical value @10,000N loaded)
- Stroke: 100 ~ 1,000mm
- Manual drive capable
- Stainless steel extension tube
- IP level: IP66 (dynamic) and IP67/IP69K (static)
- Built-in stroke limit switches
- Different control version options to suit the user’s master system
- Operating voltage and current monitoring and protection
- Soft start / stop
- Duty cycle: 15 ~ 25%.
- Operating ambient temperature: -40°C ~ +80°C (full performance +5°C ~+ 40°C)
- Low current signal control platform
- SAE J1939 CAN Bus control platform
