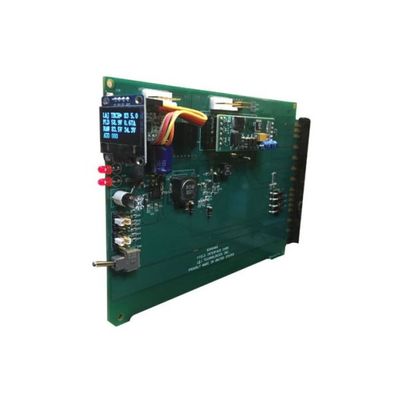

L&J Engineering - Intelligent Field Interface Card (IFIC)
The Intelligent Field Interface Card is a seamless upgrade to the existing FIC’s currently installed in the L&J Field Interface Racks, with the benefit of communicating critical field data to the MCG 3905 WINGauge Inventory Management System.
Most popular related searches
- Generates Less Heat
- More Energy Efficient
- Increased Reliability
- Field Voltage is Selectable
- Max Field Current is Selectable
- Integrated ON/OFF Switch
- TX/RX LED`s Show Field Activity
- Integral OLED Display Features:
- IFIC Temperature
- Raw Input Voltage
- Field Output Voltage
- Field Current Output. Increases in current may indicate field wiring and/or moisture problems
- Displays 5 Volt Supply
- IFIC Address
- L&J Tankway Voltage
- All of the values listed above can be communicated and displayed on the L&J MCG 3900 Gauging System via the On-Board Microprocessor.
- Field Voltage: Selectable 50v, 60v, 70v
- Field Current: Selectable 1A, 1.25A, 1.5A
- Over Current: Automatic
- Diagnostic: Tankway

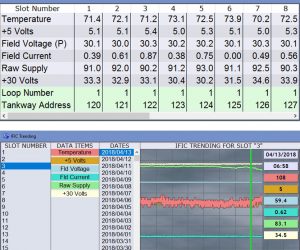

The MCG 3905 System Displays shown above can be communicated via the IFIC with a marginal software upgrade adder to existing or new MCG 3905 Systems.
