PCA - Model OlfoSense -Intelligent Multi Sensor Array
OlfoSense is a versatile tool for environmental monitoring, air monitoring and odor monitoring on large territorial scales, to be installed at the sources of odor emissions or at the perimeter of chemical plants, petrochemical plants or composting plants.
OlfoSense is an "Intelligent Multi Sensor Array" and it`s born from our research and development team, in close collaboration with Airsense Analytics. The instrument is an IOMS (Instrumental Odor Monitoring System) which measures odor dispersions and the concentration of unpleasant odors and gases.

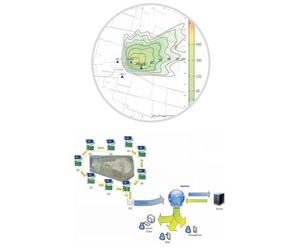

OlfoSense can be interfaced with our platform for the simulation of dispersion air pollutants and the fallout of odors and pollutants, and is able to provide a real-time view of the impact generated on the territory and odor concentration.
Water purification plants, composting plants, chemical or petrochemical plants, aerobic and anaerobic digestion plants involve high risks of environmental impact: thanks to OlfoSense and its alarm system, it is possible to intervene immediately in the event of exceeding the concentration thresholds in all those realities that must keep their emissions under control, also due to sector regulations.
In some of the most important European and Asian capitals, such as Singapore and Tianjin, OlfoSense measures the odor level and the most important chemical parameters coming from vehicular traffic and industrial emissions 24 hours a day.
One of the most important aspects is remote control and real-time visualization of the environmental impact: each OlfoSense unit sends measurement data to the central server and users manage the situation through a dedicated online platform, which is also able to receive alarms in case of exceeding the set attention thresholds.
The instrument is dedicated to the measurement of Odor concentration (expressed in OUE / m3), VOC (Volatile Organic Compounds) H2S, NH3, PM10, PM2.5, PM1. Incorporates the following detectors:
- 4 MOS (Metal Oxide Semiconductors)
- PID (Photoionization detector)
- ECD (Electrochemical detectors)
- OPC (Optical Particle Counter), "Light Scattering" principle.
- Meteorological Station
- Dispersion Modelling [SMIT (Multimodal system of spatial information)].
OlfoSense can carry out, with the support of a meteorological station, the modeling of the dispersion of pollutants through the SMIT (Multimodal system of spatial information) platform.
OLFOSENSE is a registered trademark:
- 0001653796 (Italy - UIBM)
- 015001993 (Europe - OHIM)
The Instruments Division of our company is committed in saling worldwide products for Environmental Air monitoring, Quality control and Safety. We support clients through our sale offices located in the major italian cities, and we provide trainings for users.
- Outdoor operation
- Continuous monitoring
- Wireless network
- Odour/VOC/NH3/H2S/PMx
- Dispersion modelling
Alarms
- Whenever specific limits in concentration are to comply with, thresholds can be set within the device allowing plants’ owners and Authorities to put in place corrective actions if an alarm triggers.
Monitoring parameters
- Measurement time for cycle from 30 sec.
- Flush time for cycle from 90 sec.
- Number of cycles in sequence infinite
Detectors
- MOS Sensor: Each sensor works at specific temperature
- Array VOC detector:
- PID10.6eV
- Sensitivity: 5 ppb - 20 ppm (optional 25 ppb - 200 ppm)
- OPC detector
- Optical Particle Counter
- Detection limits (PM10): 0.01 pg/m3-1 500 mg/m3.
- H2S detector: Electrochemical cell- Sensitivity: 5 ppb- 50 ppm
- NH3 detector: Electrochemical cell - Sensitivity: 0.5 -100 ppm
Communications
- Data transfer
- UMTS
- ZigBee module (piloting external devices)
System Requirements
- Operating system Software
- Windows XP, Vista, Windows 7, Windows 10 OlfoMuster (setting), OlfoClient (supervision) SMIT (dispersion modelling)
Powering
- 25 W
- 220V/50Hz
Warranty
- 12 months
