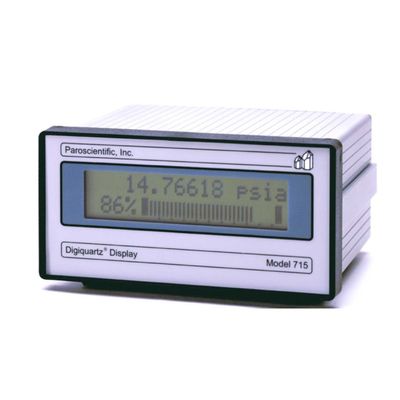

Paroscientific - Model 715 -Intelligent Transmitters

The Model 715 displays pressure and temperature data from all Paroscientific Intelligent transmitters that have Dual RS-232 and RS-485 interfaces. The two-line, 16 character, alphanumeric, backlit, liquid crystal display is user configurable with included software. Display functions include pressure and temperature values with engineering units, overpressure warning, tare indicator, user defined text messages, and a horizontal analog bar graph showing percentage of full-scale pressure. The Model 715 Display will respond to display commands from the transmitter, a computer, or other serial host on either the RS-232 or RS-485 port. For stand-alone operation, it displays data whenever power is applied to the transmitter.
